CAM ANGLE SENSOR - R.R
Removing
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

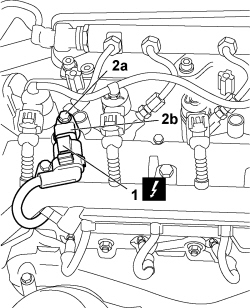

1. Detach the electrical connection for the cam angle sensor.
| Description | Connector | |
|---|---|---|
| 1 | Timing sensor | See K047 TIMING SENSOR |
2. Undo retaining bolts (2a) and remove cam angle sensor (2b).
Refitting

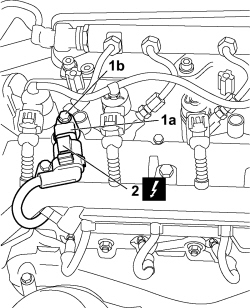

1. Fit cam (1a) angle sensor in position and tighten retaining bolt (1b).
2. Connect the electrical connection for the cam angle sensor.
| Description | Connector | |
|---|---|---|
| 2 | Timing sensor | See K047 TIMING SENSOR |
Op. 1048A10 AIR FILTER ASSEMBLY - R.R.
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
