ENGINE COOLANT TEMPERATURE SENSOR - R.R.
Removing
Op. 0010T20 ENGINE COOLANT - CHANGE
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |

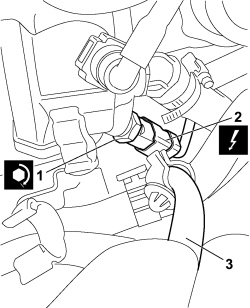

1. Release the battery positive cable from the retaining clip.
2. Detach the engine coolant temperature sensor electrical connection.
| Description | Connector | |
|---|---|---|
| 2 | Engine coolant temperature sensor/sender unit | See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT |
3. Undo the engine coolant temperature sensor and remove it.
Refitting

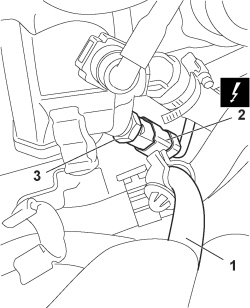

1. Fit the engine coolant temperature sensor in its housing and tighten it to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Engine coolant temperature sensor | M16x1.5 | 3.4 | 1.3 Multijet |
2. Connect the engine coolant temperature sensor electrical connection.
| Description | Connector | |
|---|---|---|
| 2 | Engine coolant temperature sensor/sender unit | See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT |
3. Attach the battery positive wiring to the retaining clip.
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
