Automatic gearbox - ZF4HP22/24Gearbox
Gearbox

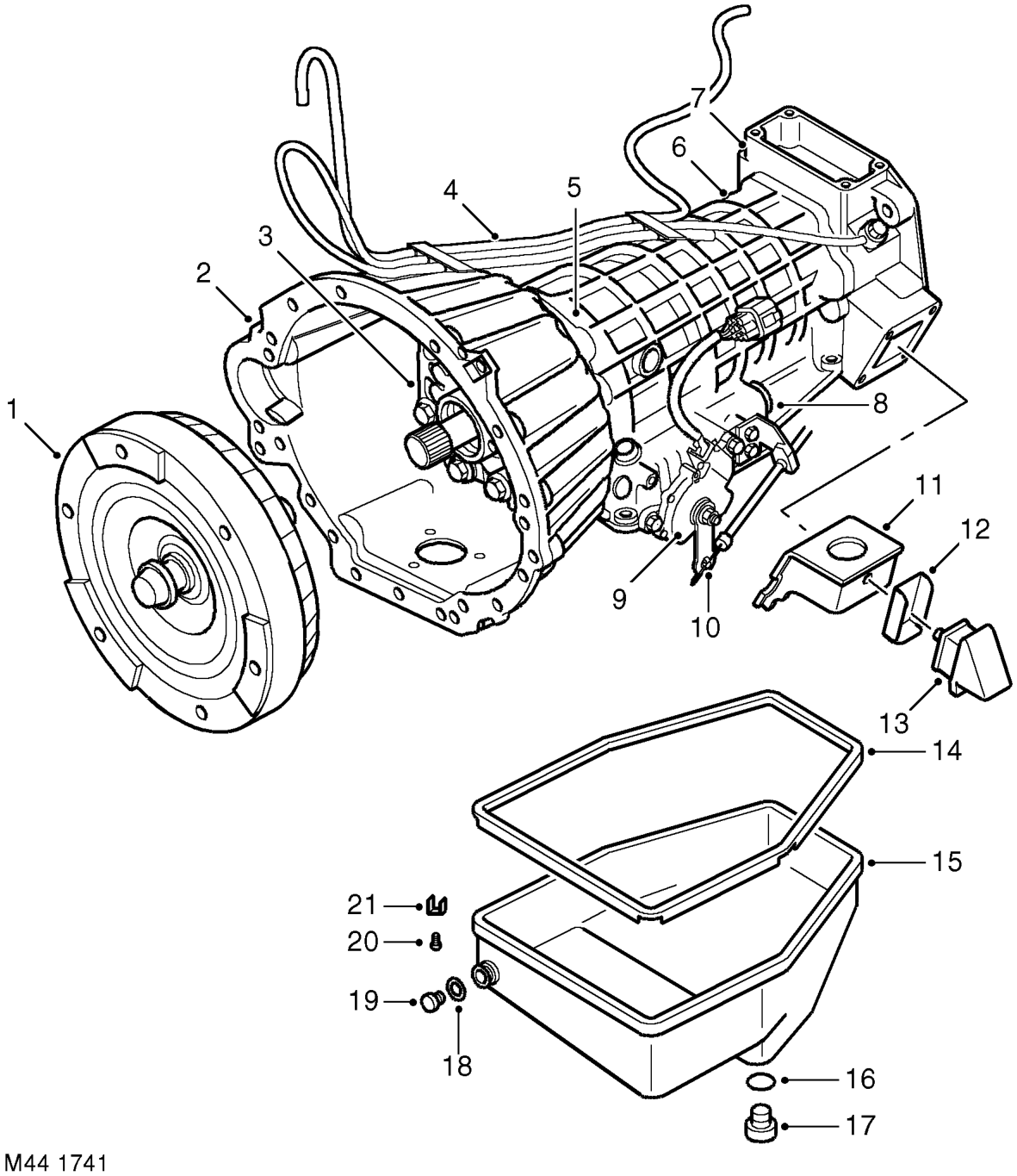

Diesel gearbox shown, V8 gearbox similar
1 Torque converter 2 Torque converter housing 3 Fluid pump 4 Breather tube 5 Intermediate plate 6 Gearbox housing 7 Rear extension housing 8 Electrical connector 9 Gear position switch 10 Selector lever 11 Mounting bracket
12 Heat shield 13 Rubber mounting 14 Gasket 15 Sump 16 'O' ring seal 17 Drain plug 18 'O' ring seal 19 Filler/level plug 20 Bolt 21 Clamp
