Automatic gearbox - ZF4HP22/24 (Valve block): Description and operation
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Valve block
Automatic gearbox - ZF4HP22/24Valve block

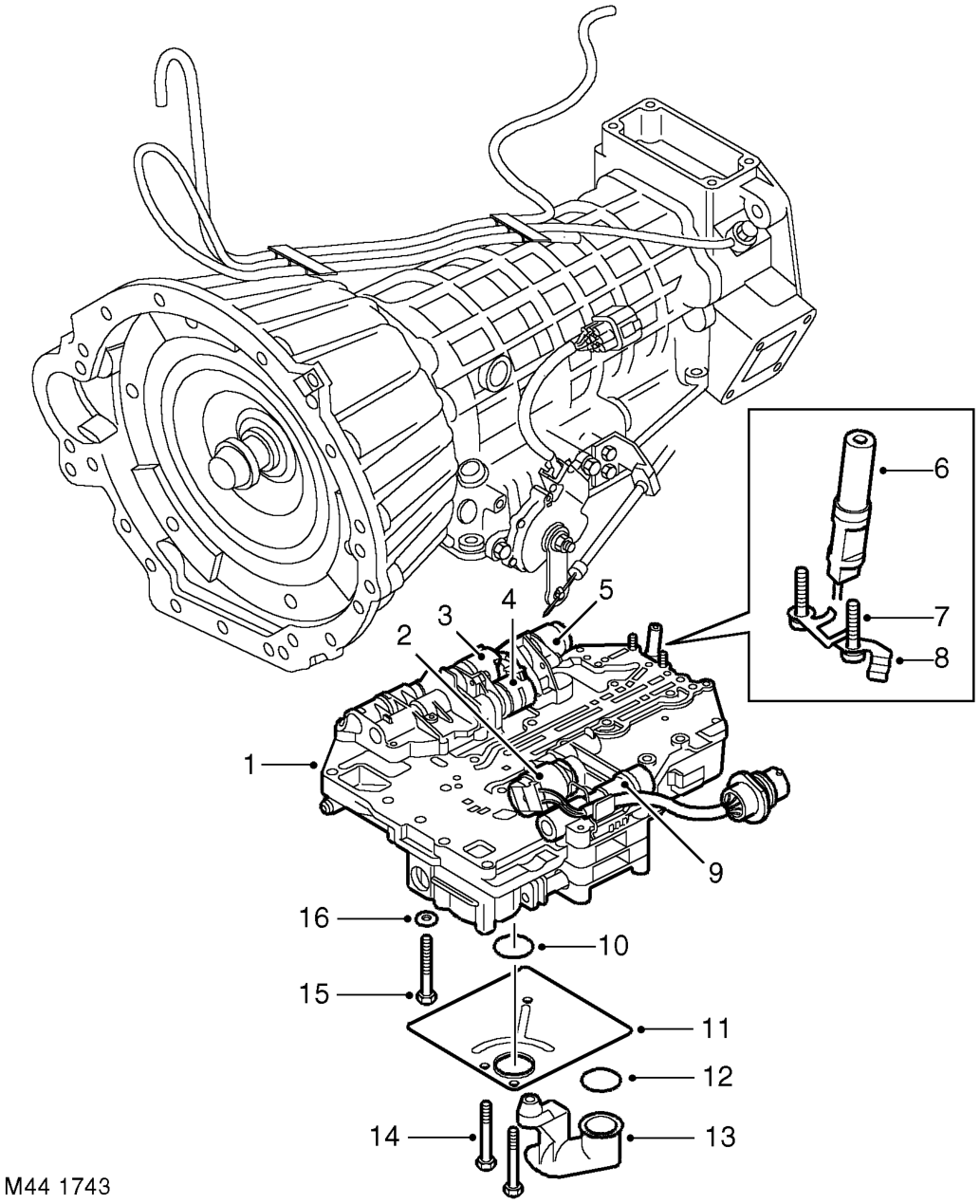

Valve block
1 Valve block 2 Pressure regulating solenoid valve (MV 4) 3 Shift control solenoid valve (MV 2) 4 Shift control solenoid valve (MV 1) 5 Lock-up solenoid valve (MV 3) 6 Output shaft speed sensor 7 Bolt 8 Sensor retaining clip
9 Manual valve 10 'O' ring 11 Filter 12 'O' ring 13 Suction pipe 14 Bolt 15 Bolt 16 Washer
