Automatic gearbox - ZF4HP22/24Warning lamps
Warning lamps

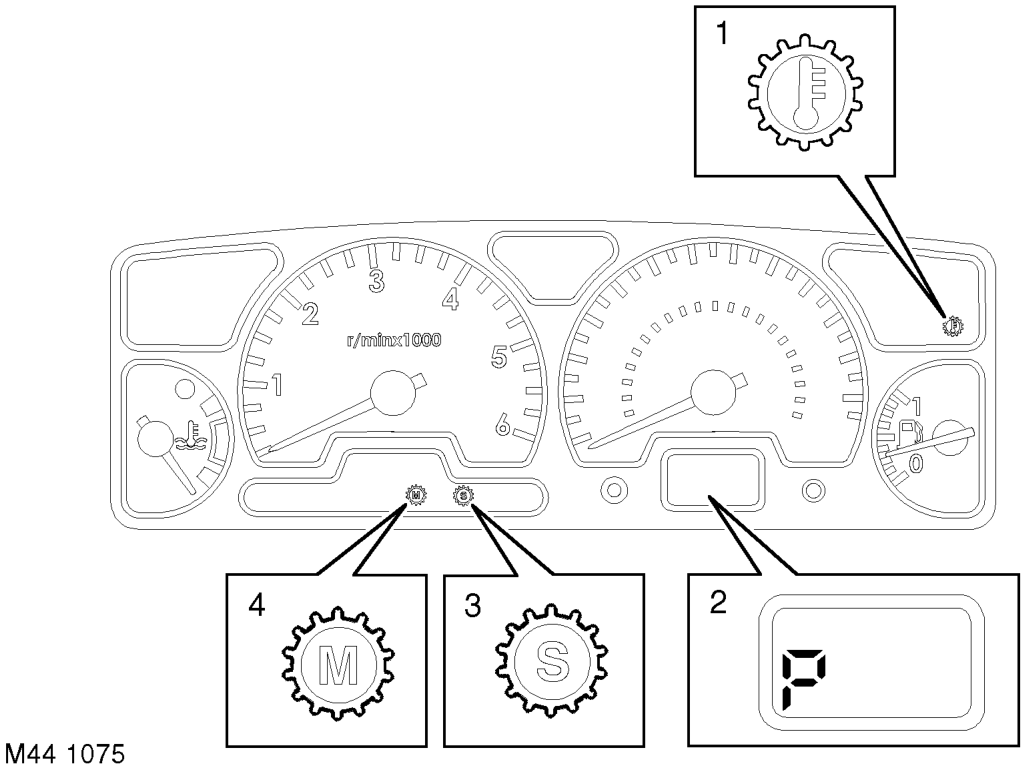

Warning lamps and selector lever position indication
1 Transmission temperature warning lamp (red) 2 Gear selector lever position indication 3 Sport mode warning lamp (green) 4 Manual mode warning lamp (green)
Illumination for each warning lamp is provided by a non serviceable LED.
