Housing - torque converter

Refit

1. Clean oil seal running surfaces.
2. Lubricate oil seal with transmission fluid.

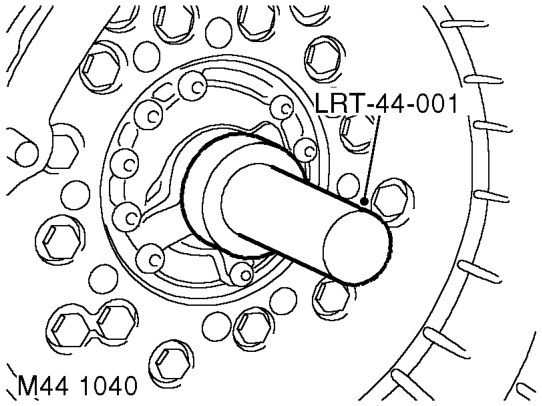

3. Fit new seal into converter housing using tool LRT-44-001.

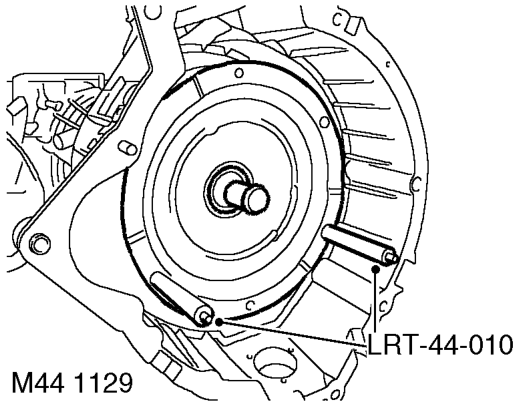

4. Fit tool LRT-44-010 to torque converter.
5. Align oil pump drive and fit torque converter to gearbox.
6. Remove tool LRT-44-010 from torque converter.
7. Fit torque converter retaining strap.
8. Fit automatic gearbox. l AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Gearbox - convertor and transfer gearbox - Diesel. l AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Gearbox - convertor and transfer gearbox - V8.

Housing - torque converter

$% 44.17.01

Remove

1. Remove torque converter oil seal. AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Torque converter and oil seal.

2. Remove 18 bolts and plain washers securing torque converter and intermediate plate to gearbox casing. Note the position of the 4 bolts that have sealant applied to the bolt threads and 6 bolts, (outer ring), which are shorter.
3. Hold input shaft in position and carefully remove the converter housing and intermediate plate from gearbox casing.

4. Note the position of the Torrington race on the forward clutch hub and the thrust washer which will stay attached to the intermediate plate by fluid adhesion.

5. Remove and discard intermediate plate gasket.
6. Remove thrust washer from intermediate plate.
7. Separate converter housing from intermediate plate.
