Parking pawl assembly.

Parking pawl assembly.

$% 44.28.07

Remove

1. Drain automatic gearbox oil. MAINTENANCE, PROCEDURES, Automatic gearbox.
2. Remove transfer gearbox. TRANSFER BOX - LT230SE, REPAIRS, Transfer box - Diesel. TRANSFER BOX - LT230SE, REPAIRS, Transfer box - V8.

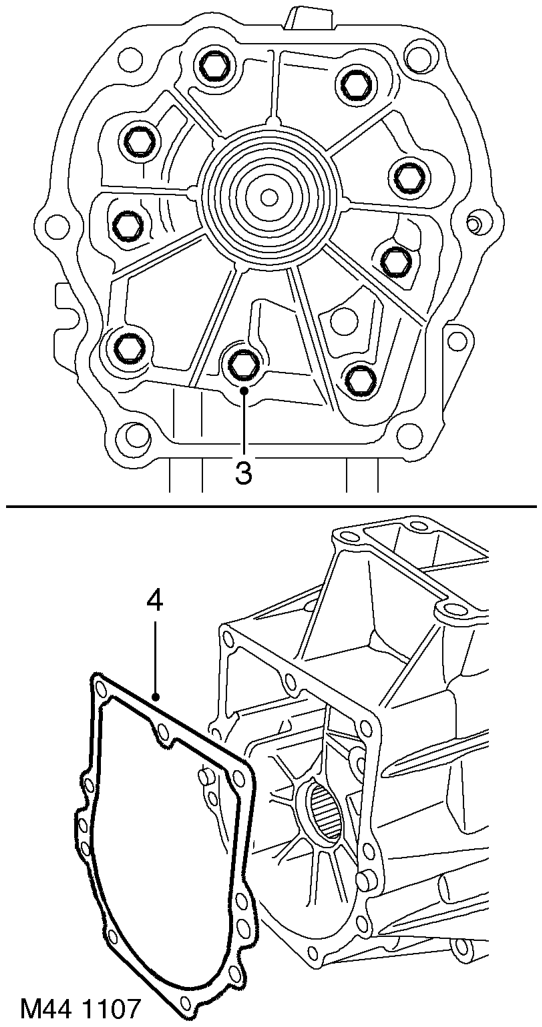

3. Remove and discard 9 bolts securing extension housing to gearbox case.
4. Remove extension housing and discard gasket.

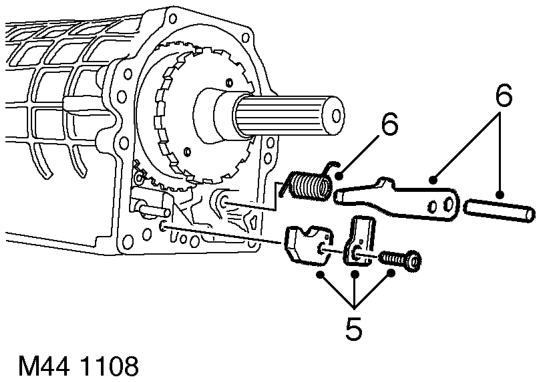

5. Remove Torx screw and discard, lift off parking pawl guide and guide plate.
6. Remove ratchet, spring and pivot pin.

8

9

7

7. Td5 models: Remove spacer from output shaft.
8. Remove park lock gear.
9. Remove and discard 'O' ring from output shaft.

Refit

1. Clean park lock components.
2. Lubricate and fit new 'O' ring to output shaft.
3. Position park lock gear on the output shaft.
4. Td5 models: Fit the spacer.

CAUTION: Ensure that spacer is fitted on output shaft - Tdi Models only. If spacer is omitted, park gear and speed sensor may move out of position.

5. Position pivot pin, spring and ratchet.
6. Position parking pawl guide and guide plate, tighten Torx screw to 10 Nm (8 lbf.ft).
