Cooler - fluid - V8

Cooler - fluid - V8

$% 44.24.10

Remove

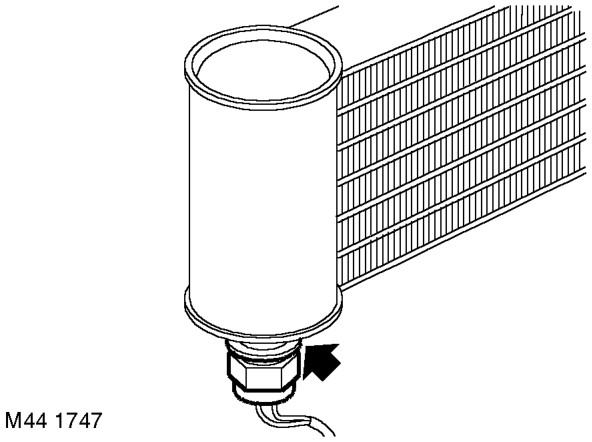

7. Remove temperature sensor and discard sealing washer.

Refit

1. Use new sealing washer and tighten temperature sensor to 14 Nm (10 lbf.ft).
2. Fit cooler, engage with radiator and secure with screw.
3. Connect temperature sensor multiplug.
4. Ensure connections are clean and fit hoses to cooler.
5. Fit intercooler. ENGINE MANAGEMENT SYSTEM - Td5, REPAIRS, Intercooler.
6. Check and if necessary top up gearbox fluid.
1. If fitted: Remove engine oil cooler. ENGINE - V8, REPAIRS, Cooler - engine oil.

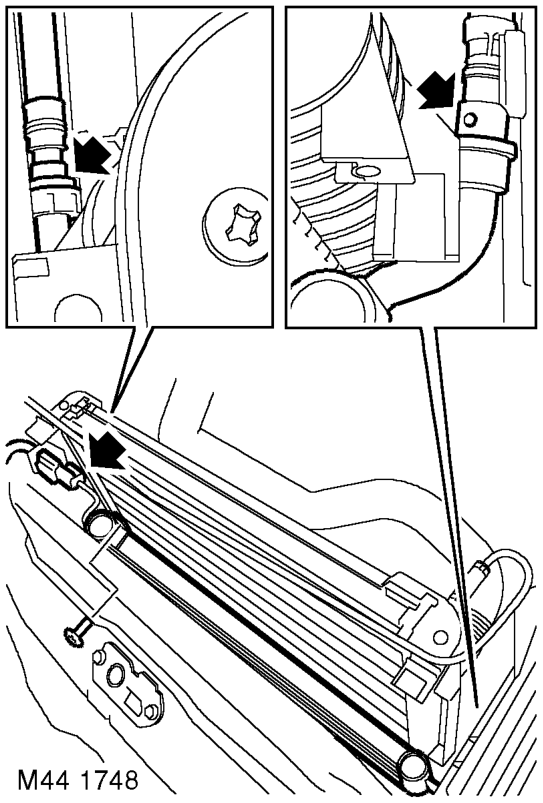

2. Disconnect fluid temperature sensor multiplug.
3. Position absorbent cloth under each gearbox cooler hose connection to collect spillage.
4. Push against coupling release ring and disconnect both fluid hoses from cooler.

CAUTION: Always fit plugs to open connections to prevent contamination.

5. Remove screw and release cooler from radiator.
6. Carefully move radiator towards engine and remove cooler.
