Repairs › Seal - selector shaft
Automatic gearbox - ZF4HP22/24Seal - selector shaft
Diagram

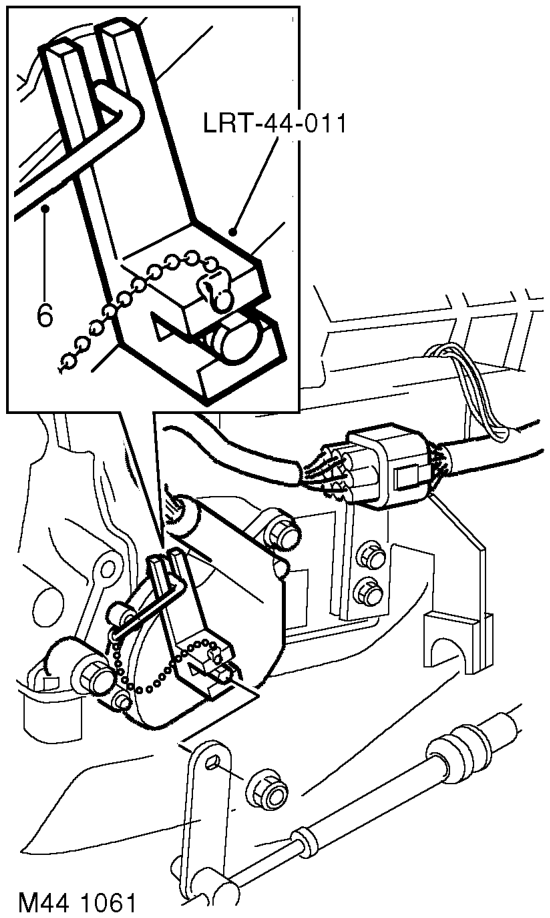

  1. Fit tool LRT-44-011 to selector shaft.
  2. Insert setting pin into tool. Rotate switch until setting pin engages with hole in switch as shown and tighten bolts to 10 Nm (7 lbf.ft).
  3. Remove setting tool LRT-44-011.
  4. Position selector lever to selector shaft and tighten nut to 26 Nm (19 lbf.ft).
  5. Diesel models: Fit exhaust front pipe. MANIFOLDS AND EXHAUST SYSTEMS - Td5, REPAIRS, Pipe - front.

Seal - selector shaft

$% 44.15.34

Remove

  1. Remove valve body assembly. AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Valve body assembly.
Seal - selector shaft – Remove valve body assembly.  AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Valve body assemb
  1. Remove nut securing selector shaft lever and release lever from shaft.
  2. Remove 2 bolts securing gear selector switch to gearbox and remove switch.

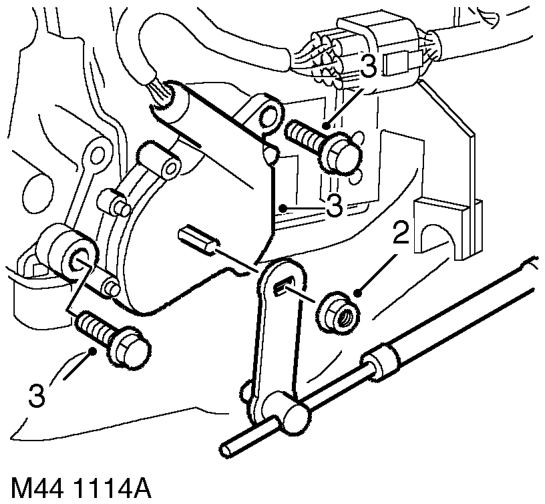

Seal - selector shaft – Remove 2 bolts securing gear selector switch to gearbox and remove switch.

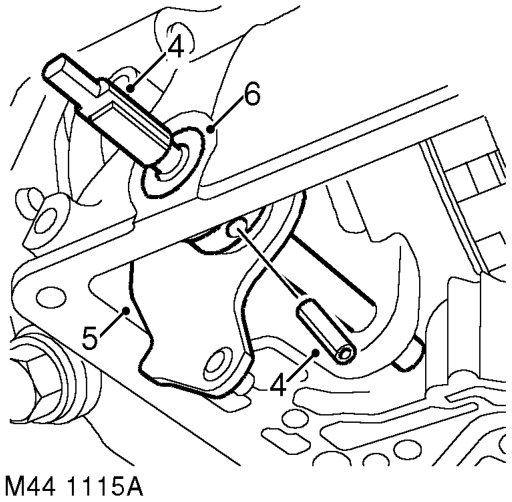

  1. Drift out and discard selector quadrant roll pin. Remove selector shaft.
  2. Remove selector quadrant and connecting rod.
  3. Remove oil seal taking care not to damage seal housing.
