Automatic gearbox - ZF4HP22/24Cable and lever assembly - selector

REPAIRS

Cable and lever assembly - selector

$% 44.15.08

Remove

  1. Remove centre console. INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - automatic models.
  2. Raise vehicle on ramp.

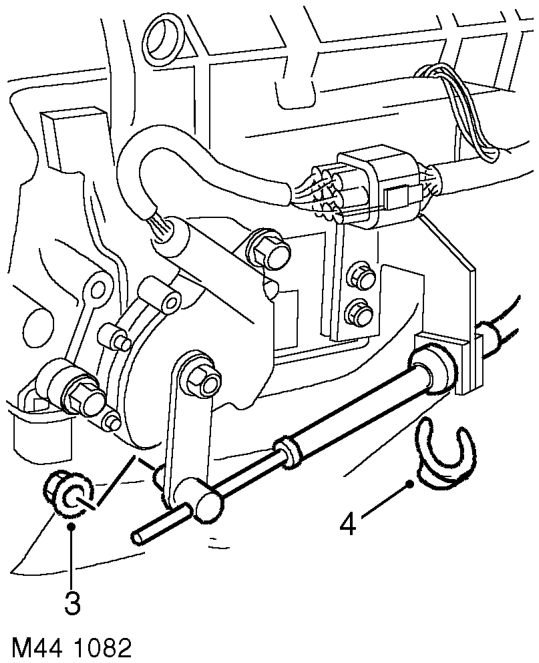

Cable and lever assembly - selector – Raise vehicle on ramp.
  1. Loosen selector cable trunnion nut.
  2. Remove 'C' clip and release selector cable from gearbox bracket.
  3. Lower vehicle on ramp.

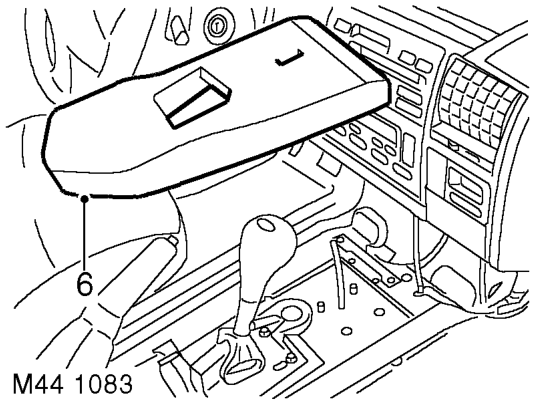

Cable and lever assembly - selector – Lower vehicle on ramp.
  1. Remove sound deadener pad.

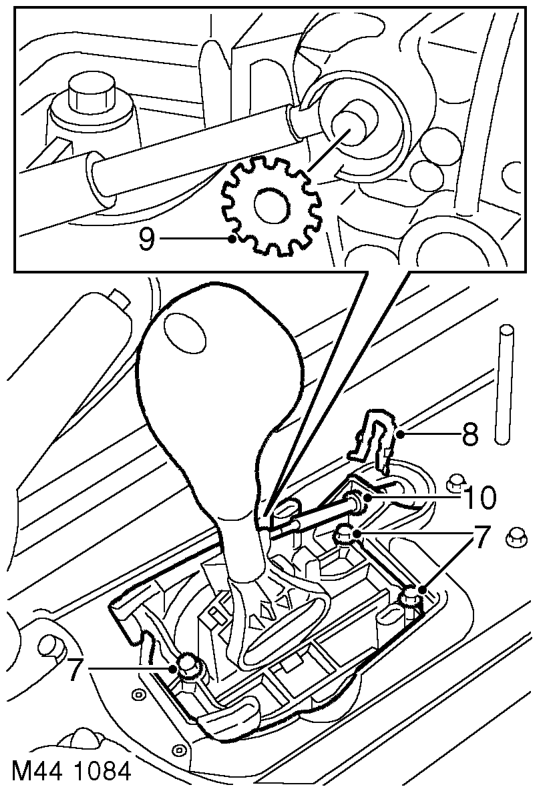

Cable and lever assembly - selector – Remove sound deadener pad.
  1. Remove 3 bolts securing selector lever bracket to tunnel, remove selector lever.
  2. Remove 'C' clip securing outer cable to selector lever bracket.
  3. Remove locking ring securing inner cable to selector lever.
  4. Release inner cable from selector lever, release cable from grommet and remove cable from selector lever bracket.

Refit

  1. Position cable through grommet, align to bracket and secure with 'C' clip.
  2. Fit inner cable to selector lever and secure with locking ring.
  3. Feed selector cable through tunnel, align bracket, fit and tighten bolts.
  4. Fit sound deadener pad.
  5. Fit centre console. INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - automatic models.
  6. Position selector cable through trunnion and gearbox bracket, secure with 'C' clip.
  7. Adjust selector cable. AUTOMATIC GEARBOX - ZF4HP22 - 24, ADJUSTMENTS, Cable - selector.
