Land Rover Discovery II (UK)09 · Engine - Td5
09 · Engine

Flywheel Drive plate

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul › Flywheel Drive plate
Engine - Td5Flywheel Drive plate

Flywheel Drive plate

$% 12.53.07.01 $% 12.53.13.01

Disassembly Disassembly

Disassembly disassembly – $% 12.53.07.01 $% 12.53.13.01
  1. Remove 3 bolts securing damper to crankshaft pulley, fit LRT-51-003 to crankshaft pulley, secure with 2 bolts.
  2. Restrain crankshaft using LRT-51-003, remove and discard 8 bolts securing flywheel to crankshaft. Release flywheel from locating dowels; remove flywheel.

Reassembly

  1. Clean flywheel and crankshaft mating faces.
  2. Position flywheel on crankshaft.
  3. Fit new bolts to retain flywheel and tighten by diagonal selection to: l Stage 1 - 40 Nm (30 lbf.ft) l Stage 2 - Further 90°

CAUTION: Do not carry out stages 1 and 2 in one operation.

  1. Remove tool LRT-51-003, fit damper and tighten bolts to 80 Nm (59 lbf.ft).

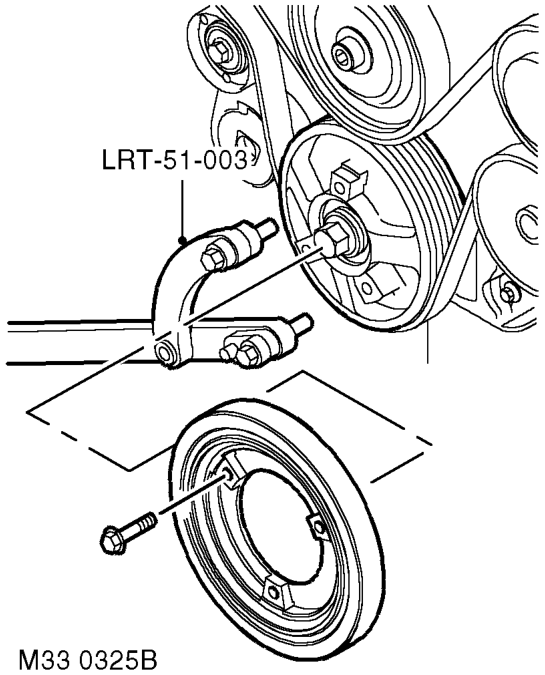

Reassembly – Remove tool LRT-51-003, fit damper and tighten bolts to 80 Nm (59 lbf.ft).
  1. Remove 3 bolts securing damper to crankshaft pulley, fit LRT-51-003 to crankshaft pulley, secure with 2 bolts.

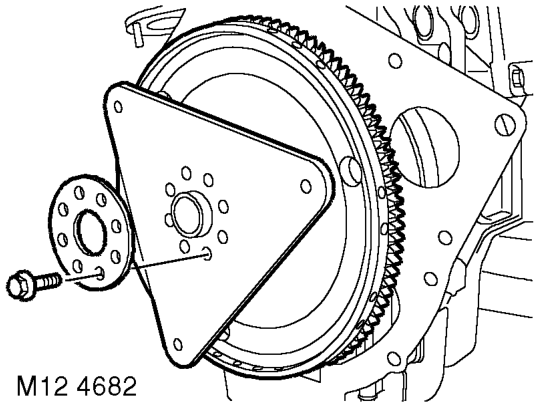

Reassembly – Remove 3 bolts securing damper to crankshaft pulley, fit LRT-51-003 to crankshaft pulley,
  1. Restrain crankshaft using LRT-51-003, remove and discard 8 bolts securing drive plate, spacer and starter ring gear to crankshaft, release starter ring gear from locating dowels and remove.
