Land Rover Discovery II (UK)09 · Engine - Td5
09 · Engine

Seal - crankshaft - rear - automatic models

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul › Seal - crankshaft - rear - automatic models
Engine - Td5Seal - crankshaft - rear - automatic models

Seal - crankshaft - rear - automatic models

$% 12.21.20.01

Disassembly

  1. Remove sump gasket. ENGINE - Td5, OVERHAUL, Gasket - engine sump.
  2. Remove drive plate. ENGINE - Td5, OVERHAUL, Drive plate.
Disassembly – Remove drive plate.  ENGINE - Td5, OVERHAUL, Drive plate.

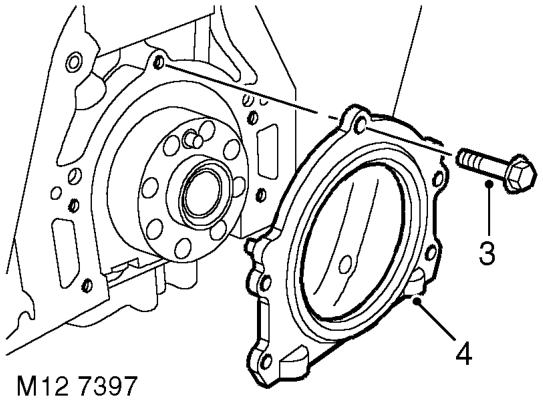

  1. Remove 5 bolts securing crankshaft rear oil seal housing to cylinder block.
  2. Release crankshaft rear oil seal housing from locating dowels, discard rear oil seal and housing.

Reassembly

  1. Clean crankshaft oil seal housing mating face on cylinder block, ensure bolt and dowel holes are clean and dry. Remove all traces of oil from oil seal running surface on crankshaft.
Reassembly – Clean crankshaft oil seal housing mating face on cylinder block, ensure bolt and dowel hol

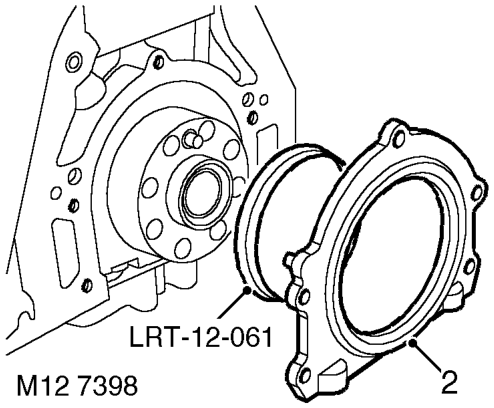

  1. Position seal protector LRT-12-061 over crankshaft boss. Fit new oil seal and housing and remove tool LRT-12-061.

CAUTION: Oil seal must be fitted dry.

Reassembly – Position seal protector LRT-12-061 over crankshaft boss. Fit new oil seal and housing and

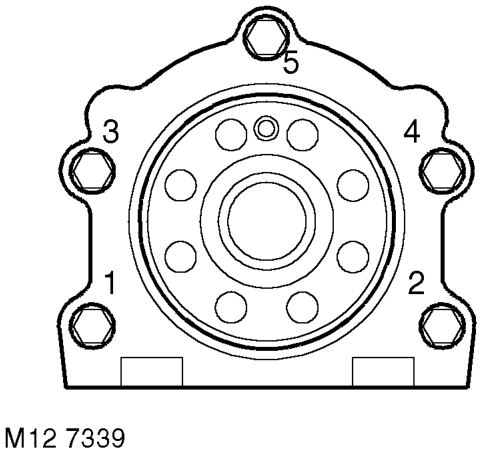

  1. Fit oil seal housing bolts and using sequence shown, tighten to 9 Nm (7 lbf.ft).
  2. Fit sump gasket. ENGINE - Td5, OVERHAUL, Gasket - engine sump.
  3. Fit drive plate. ENGINE - Td5, OVERHAUL, Drive plate.
