Harness - injectors - diesel (page 5 of 12)

Make

Land Rover

Model

Discovery II (UK)

Section

Repairs

HarnessesHarness - injectors - diesel · page 5 of 12

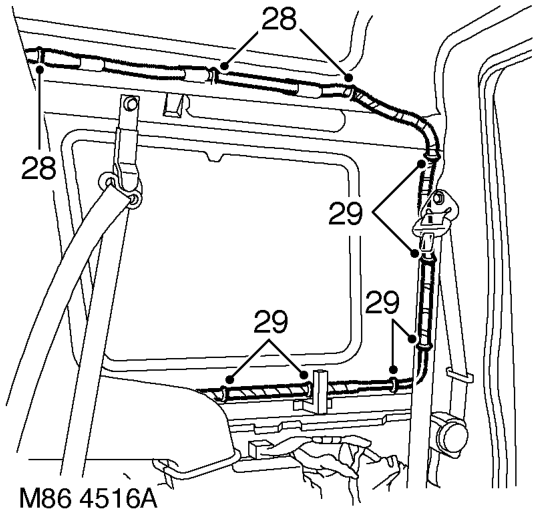

28. Release 3 harness retainers securing harness to RH side of body.
29. Release 6 cable clips securing harness to body.

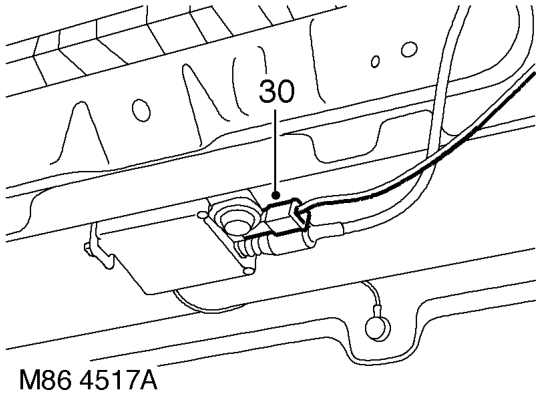

30. Disconnect Lucar from RH aerial amplifier.
31. Release harness from roof and feed to upper 'E' post.
32. Remove tail door trim casing. DOORS, REPAIRS, Trim casing - tail door.
33. Carefully release plastic sheet from tail door.

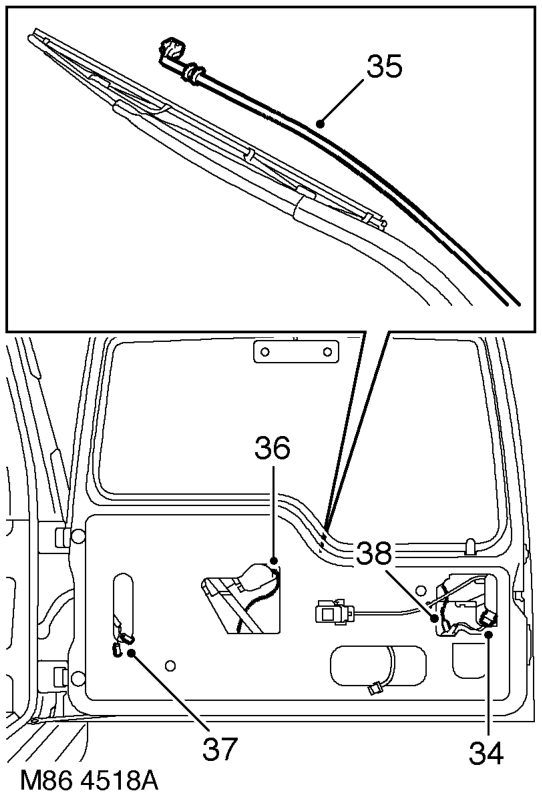

34. Disconnect multiplug from door latch.
35. Disconnect multiplug and washer tube from rear wiper arm.
36. Disconnect multiplug from rear wiper motor.
37. Disconnect 2 Lucars from heated rear window (HRW).
38. Disconnect multiplug from number plate lamp.

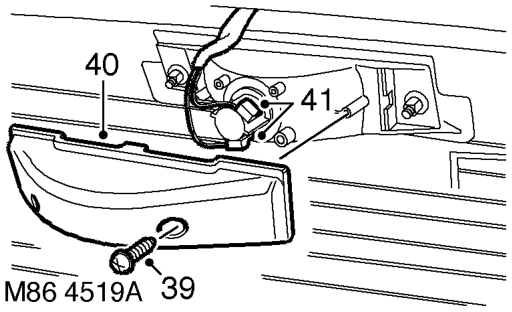

39. Remove 2 screws securing centre high mounted stop lamp (CHMSL) cover to tail door glass.
40. Remove CHMSL cover.
41. Disconnect 2 Lucars from CHMSL.
42. Attach draw string to harness and draw harness through tail door.
43. Disconnect draw string from harness, and tape to the tail door.

54 General
