Repairs › Trim casing - tail door
DoorsTrim casing - tail door

Trim casing - tail door

$% 76.34.09.99

Remove

  1. If fitted, remove tail door speaker. IN CAR ENTERTAINMENT, REPAIRS, Speaker - tail door.

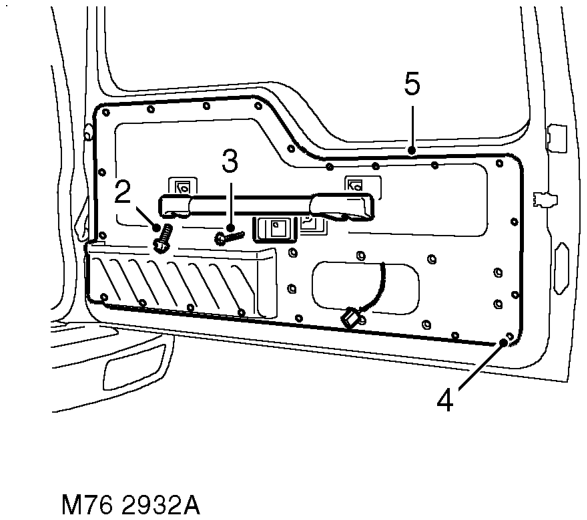

Trim casing - tail door – If fitted, remove tail door speaker.  IN CAR ENTERTAINMENT, REPAIRS, Speaker - tail door.
  1. Remove 2 bolts securing hand rail to tail door and remove hand rail.
  2. Remove screw securing door handle escutcheon to door and remove escutcheon.
  3. Carefully release 20 clips securing trim casing to tail door.
  4. Remove tail door trim casing.

Refit

  1. Fit trim casing to tail door and secure with clips.
  2. Fit escutcheon to door handle and secure with screw.
  3. Fit hand rail to tail door and secure with bolts tightened to 10 Nm (7 lbf.ft).
  4. If applicable, fit tail door speaker. IN CAR ENTERTAINMENT, REPAIRS, Speaker - tail door.

Latch and motor - front door

$% 76.37.12

Remove

  1. Remove front door frame. DOORS, REPAIRS, Glass - front or rear door.

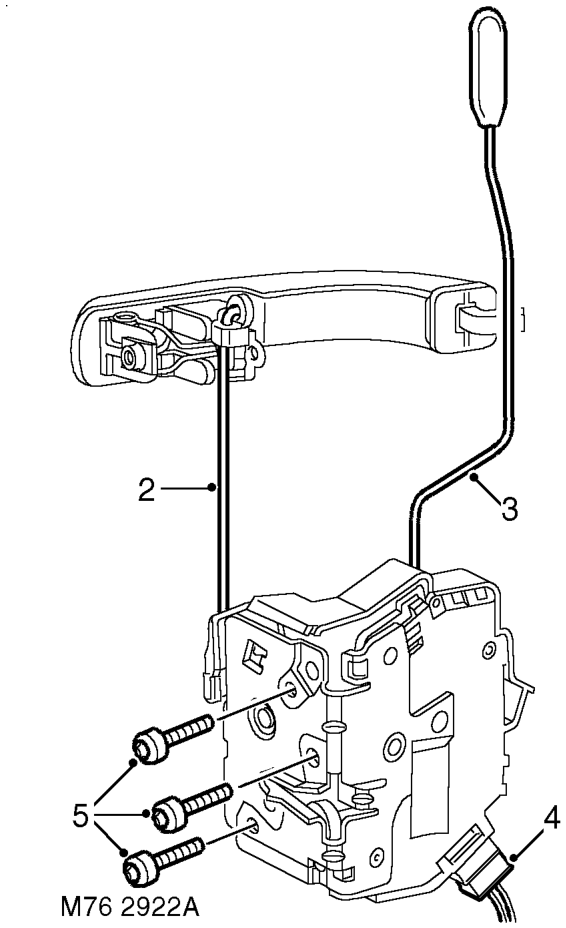

Latch and motor - front door – Remove front door frame. DOORS, REPAIRS, Glass - front or rear door.
  1. Release exterior handle control rod from latch.
  2. Release and disconnect sill button lock rod from latch.

4. Disconnect multiplug from motor.

  1. Remove 3 Torx screws securing latch and motor assembly to door.
  2. Remove latch and motor assembly through aperture in the lower section of the door.
