Trim casing - rear door

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Trim casing - rear door
DoorsTrim casing - rear door

Trim casing - rear door

$% 76.34.04.99

Remove

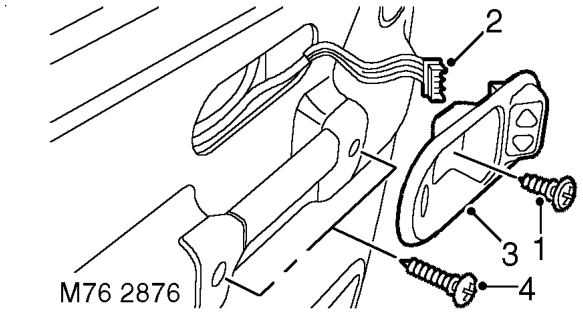

Trim casing - rear door – $% 76.34.04.99
  1. Remove screw securing door handle escutcheon to door.
  2. Disconnect multiplug from window switch.
  3. Remove door handle escutcheon.
  4. Remove 2 screws securing hand rail to door.

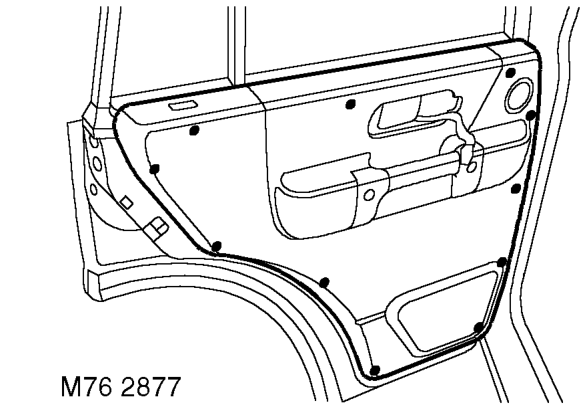

Trim casing - rear door – Remove 2 screws securing hand rail to door.

Refit

  1. Carefully release 11 clips securing trim casing to door.

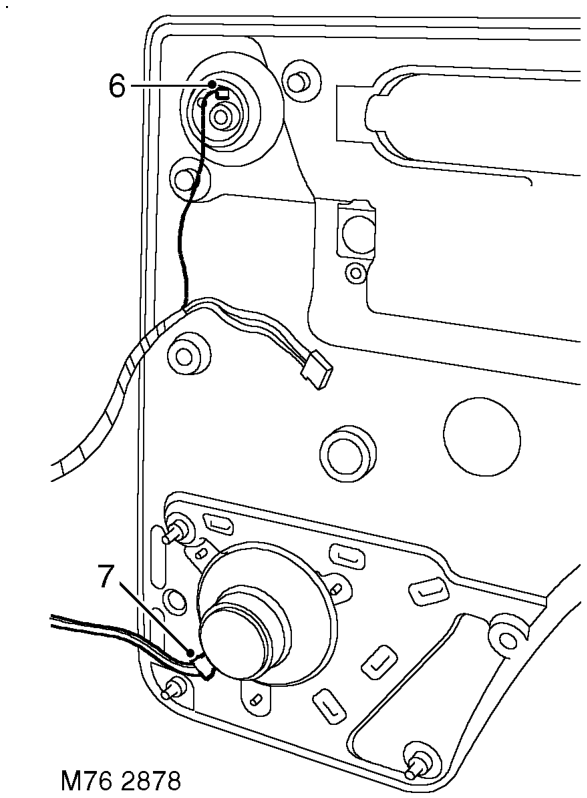

Trim casing - rear door – Carefully release 11 clips securing trim casing to door.
  1. If fitted, disconnect multiplug from upper door speaker.
  2. Disconnect multiplug from lower door speaker.
  3. Remove trim casing from door.
  4. Position trim casing to door and connect door speaker multiplug(s).
  5. Secure trim casing to door with clips.
  6. Fit hand rail to door and secure with screws.
  7. Connect multiplug to window switch.
  8. Fit escutcheon to door handle and secure with screw.
