Handle - exterior - front door

$% 76.58.07

Remove

  1. Remove front door trim casing. DOORS, REPAIRS, Trim casing - front door.
  2. Carefully release water shedder from door.

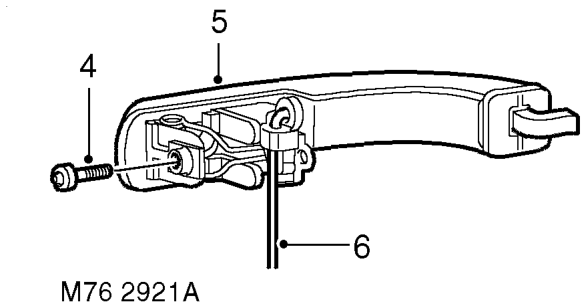

Handle - exterior - front door – Carefully release water shedder from door.
  1. Release control rod from latch.
  2. Remove Torx bolt securing exterior handle to door.
  3. Remove exterior handle.
  4. Remove control rod from exterior handle.

Refit

  1. Fit control rod to exterior handle.
  2. Position exterior handle to door, fit Torx bolt and tighten to 7 Nm. (5.2 lbf.ft).
  3. Connect control rod to door latch.
  4. Fit water shedder to door.
  5. Fit front door trim casing. DOORS, REPAIRS, Trim casing - front door.
