Door - tail

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Door - tail
DoorsDoor - tail · page 1 of 2

Door - tail

$% 76.28.19.99

Remove

  1. Remove spare wheel from tail door.
  2. Remove tail door trim casing. DOORS, REPAIRS, Trim casing - tail door.
  3. Carefully release water shedder from tail door.

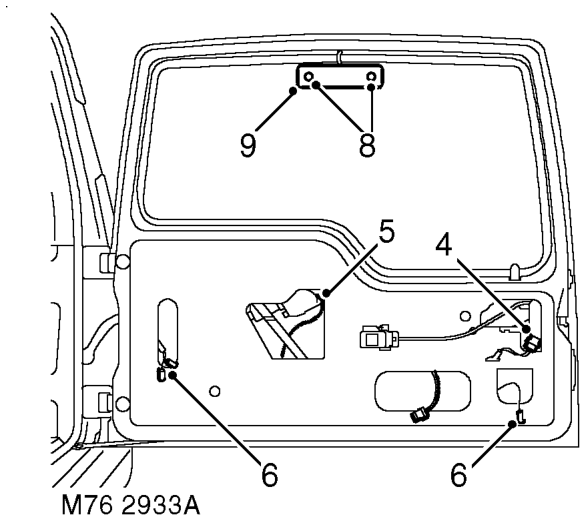

Door - tail – Carefully release water shedder from tail door.
  1. Disconnect multiplug from door latch.
  2. Disconnect multiplug from rear wiper motor.
  3. Disconnect 2 Lucars from Heated Rear Window (HRW).
  4. Disconnect multiplug from number plate lamp.
  5. Remove 2 screws securing Centre High Mounted Stop Lamp (CHMSL) cover to tail door glass.
  6. Remove CHMSL cover.
  7. Disconnect 2 Lucars from CHMSL.
  8. Attach draw string to CHMSL wires and draw wires through tail door. Disconnect draw string from wires.
  9. Tape draw string in tail door to retain its position.
  10. Release washer tube from rear of wiper arm.

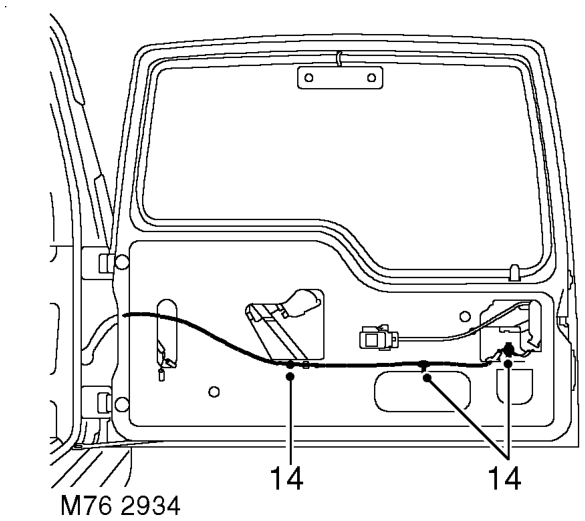

Door - tail – Release washer tube from rear of wiper arm.
  1. Release 3 clips securing harness to tail door.
  2. Release harness sleeve from door outer edge and feed harness and washer tube through door.
  3. Remove spring clip securing check strap to tail door aperture and collect washer.

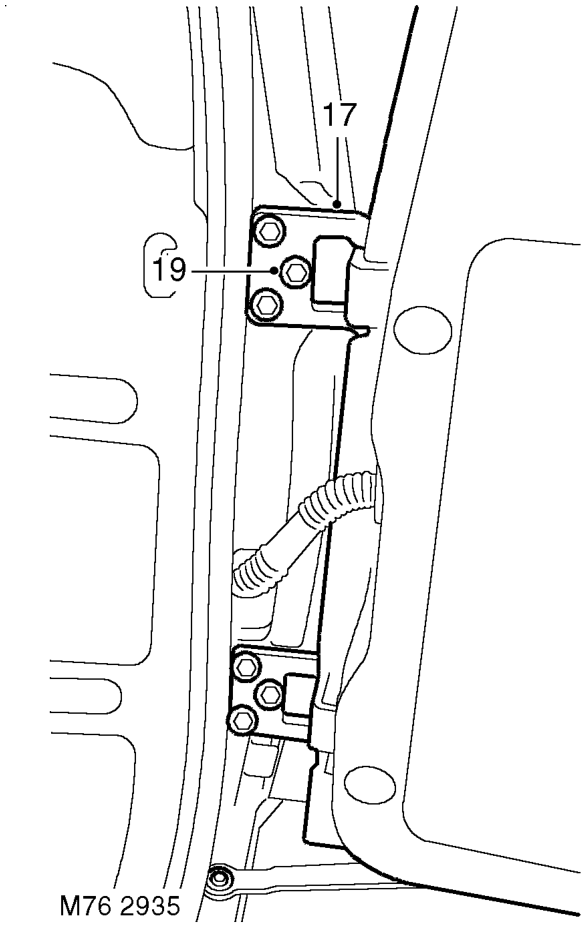

Door - tail – Remove spring clip securing check strap to tail door aperture and collect washer.
  1. Mark position of hinges.
  2. Support the tail door on a jack, using a block of wood to protect the door.
