Trim casing - front door

Trim casing - front door

$% 76.34.01.99

Remove

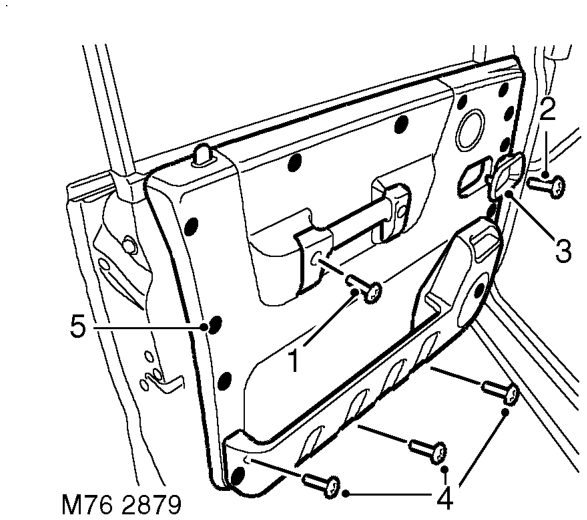

1. Remove 2 screws securing hand rail to door.
2. Remove screw securing door handle escutcheon to door.
3. Remove escutcheon.
4. Remove 4 screws securing pocket to door.
5. Carefully release 10 clips securing trim casing to door.

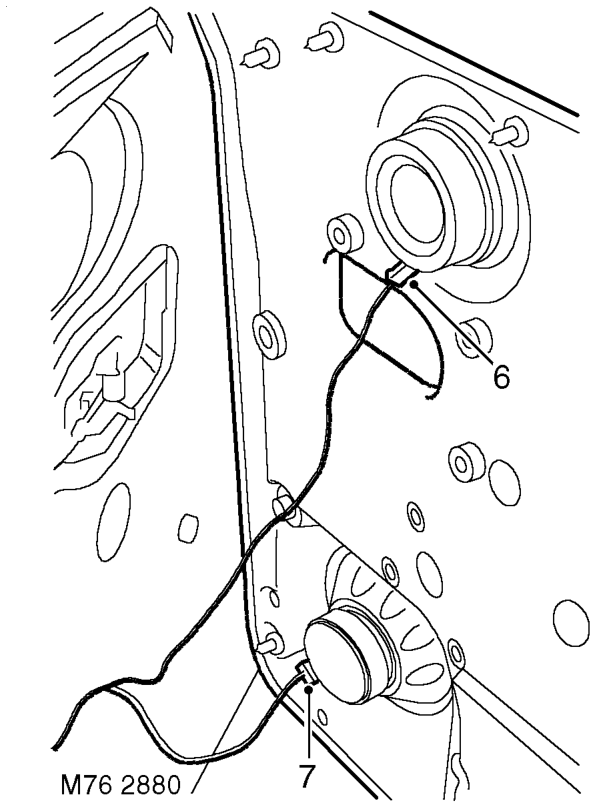

6. If fitted, disconnect multiplug from upper door speaker.
7. Disconnect multiplug from lower door speaker.
8. Remove trim casing from door.

Refit

1. Position trim casing to door and connect door speaker multiplug(s).
2. Secure trim casing to door with clips.
3. Fit escutcheon to door handle and secure with screw.
4. Fit hand rail to door and secure with screws.
5. Fit pocket to door and secure with screws.
