Latch and motor - tail door

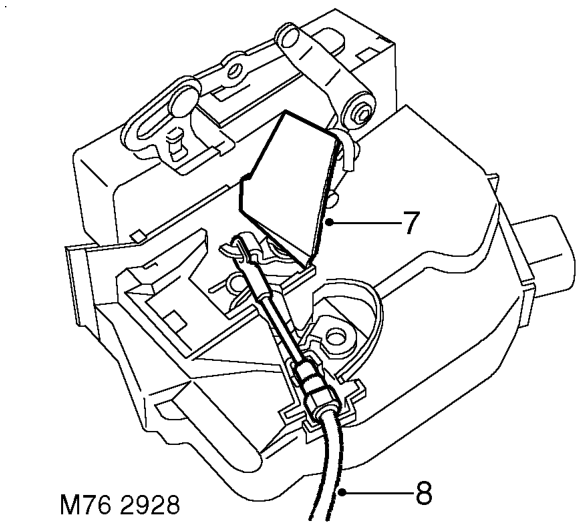

7. Open security flap on latch.
8. Disconnect release cable from latch.

Refit

1. Connect release cable to latch and close security flap.
2. Position latch to door, fit Torx screws securing latch to door and tighten to 7 Nm (5.2 lbf.ft).
3. Connect multiplug to motor.
4. Connect exterior handle control rod to latch.
5. Connect sill button lock rod to latch.
6. Fit rear door frame. DOORS, REPAIRS, Glass - front or rear door.

Latch and motor - tail door

$% 76.37.16

Remove

1. Remove tail door trim casing. DOORS, REPAIRS, Trim casing - tail door.
2. Carefully release water shedder from tail door.

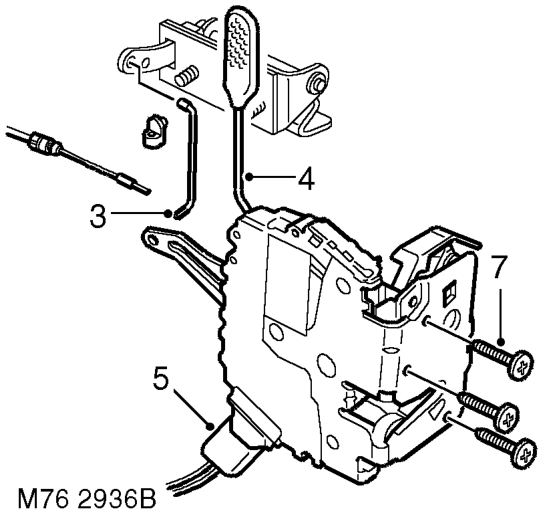

3. Release and remove control rod from exterior handle and latch.

4. Release and remove sill button lock rod.

5. Disconnect multiplug from motor.
6. Remove release cable from clip.
7. Remove 3 Torx screws securing latch and motor assembly to door.
8. Remove door latch.
9. Disconnect release cable from latch.

Refit

1. Connect release cable to latch.
2. Position door latch and motor assembly, secure with Torx screws and tighten to 7 Nm (5.2 lbf.ft).
3. Position control rod and connect to exterior handle and latch.
4. Position sill button lock rod and connect to latch.
5. Secure release cable in clip.
6. Connect multiplug to motor.
7. Fit water shedder to door.
8. Fit tail door trim casing. DOORS, REPAIRS, Trim casing - tail door.
