Quarter light

Refit

1. Fit glass to frame.
2. Position frame to door and tighten bolts securing front door frame to 10 Nm (7 lbf.ft) and bolts securing rear door frame to 22 Nm (16 lbf.ft).
3. Secure regulator to glass with bolts and tighten to 6 Nm (4.4 lbf.ft).
4. Fit inner and outer waist seal and secure with clips.
5. Front door glass only: Fit exterior door mirror. EXTERIOR FITTINGS, REPAIRS, Mirror - exterior - electric.
6. Fit water shedder to door.
7. Fit door trim casing. DOORS, REPAIRS, Trim casing - front door. DOORS, REPAIRS, Trim casing - rear door.

Quarter light

$% 76.31.31

Remove

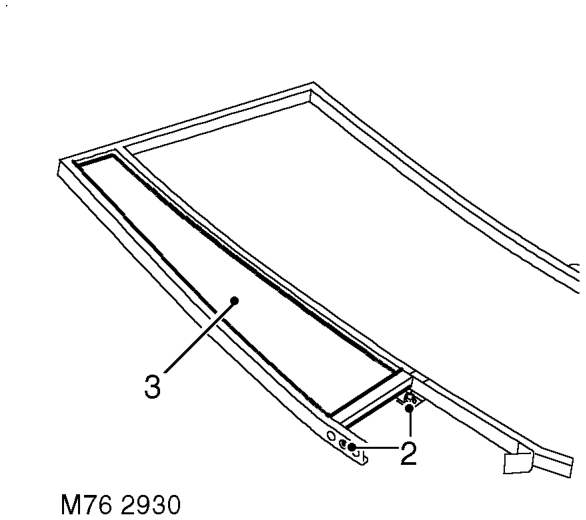

1. Remove rear door glass. DOORS, REPAIRS, Glass - front or rear door.

2. Remove 2 bolts securing quarter light glass to frame.
3. Remove quarter light glass from frame.

Refit

1. Fit quarter light glass to frame.
2. Fit bolts securing quarter light glass to frame and tighten to 10 Nm (7 lbf.ft).
3. Fit rear door glass. DOORS, REPAIRS, Glass - front or rear door.
