Land Rover Discovery II (UK)31 · Rear suspension
31 · Steering & suspension

Bushes - rear long arm - ACE (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Rear suspensionBushes - rear long arm - ACE · page 2 of 2
Diagram

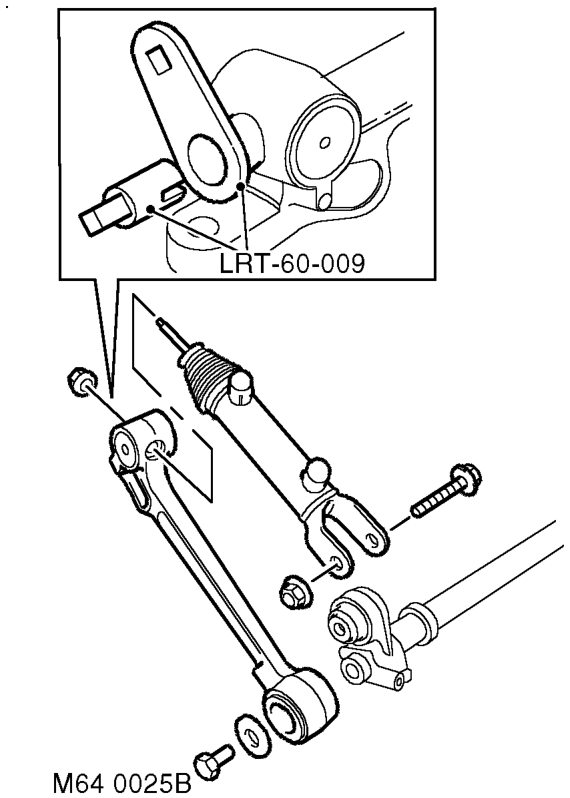

  1. Use LRT-60-009 to remove nut securing actuator push rod to long arm.
  2. Remove nut and bolt securing actuator to short arm and remove actuator.
Remove nut and bolt securing actuator to short arm and remove actuator.

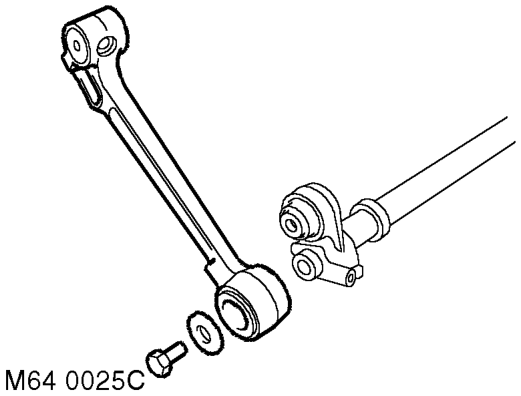

  1. Restrain torsion bar and remove long arm securing bolt and washer. Remove long arm from torsion bar.

CAUTION: The short arm and torsion bar are supplied as an assembly and must not be separated.

Restrain torsion bar and remove long arm securing bolt and washer. Remove long arm from to

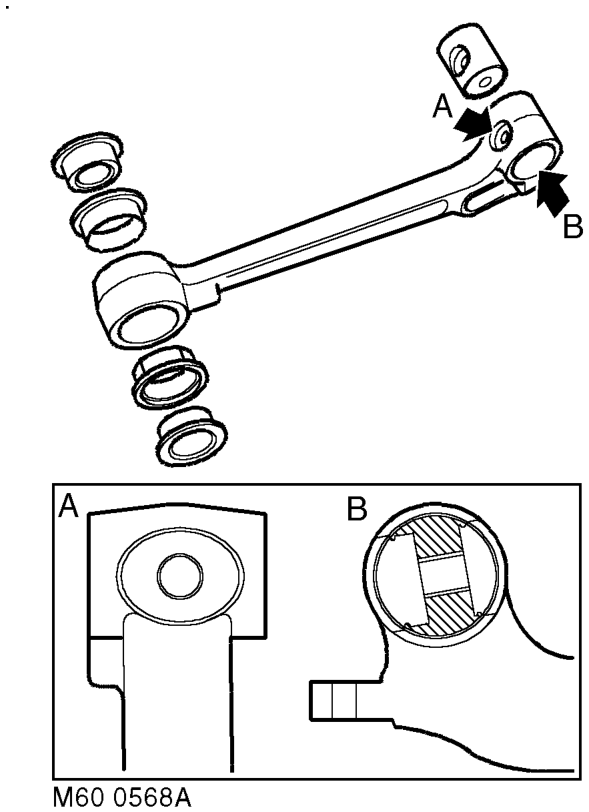

  1. Use a suitable drift to remove both halves of slipper bush from long arm.
  2. Use suitable adaptors to press actuator rod end bush from long arm.
