Damper - rear (page 2 of 2)

Refit

6. Press out bushes from axle end of radius arm using a length of steel tubing.

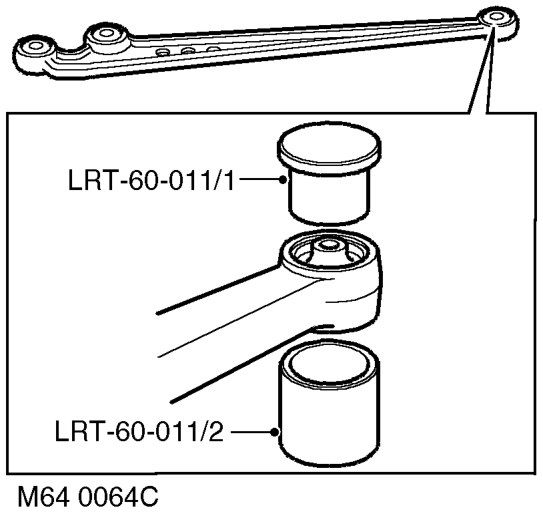

7. Press out bush from rear of radius arm: l Use LRT-60-011/1 and LRT-60-011/2 to remove rear bush.
1. Clean bush locations in radius arms.

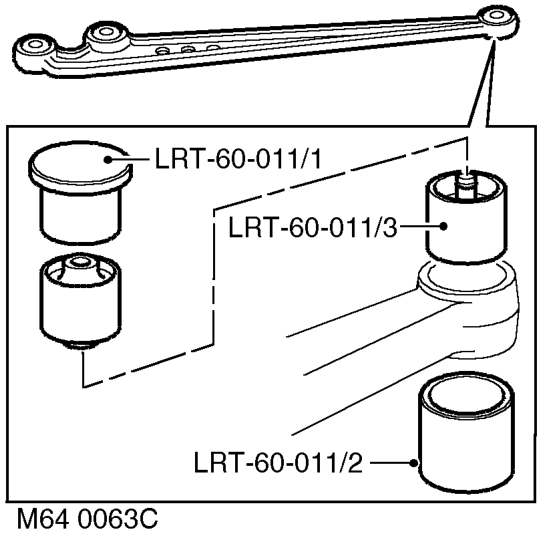

2. Press in new bushes: l Use LRT-60-011/1, LRT-60-011/2 and LRT-60-011/3 to fit rear bush.
3. Position radius arm to vehicle. Fit bolts and nuts but do not tighten at this stage.
4. Models with SLS: Position height sensor link to radius arm and tighten nut and bolt to 25 Nm (18 lbf.ft).
5. Fit road wheel(s) and tighten nuts to 140 Nm (103 lbf.ft).
6. Remove stand(s) and lower vehicle.
7. Tighten radius arm nuts and bolts to 230 Nm (170 lbf.ft).

CAUTION: Nuts and bolts must be tightened with weight of vehicle on suspension.

8. Use TestBook to calibrate SLS height sensor.
