Cable - high/low selector

5. Tighten nut securing differential lock switch to 11 Nm (8 lbf.ft)
6. Connect Lucars to switch.
7. Fit front propeller shaft. PROPELLER SHAFTS, REPAIRS, Propeller shaft - front.

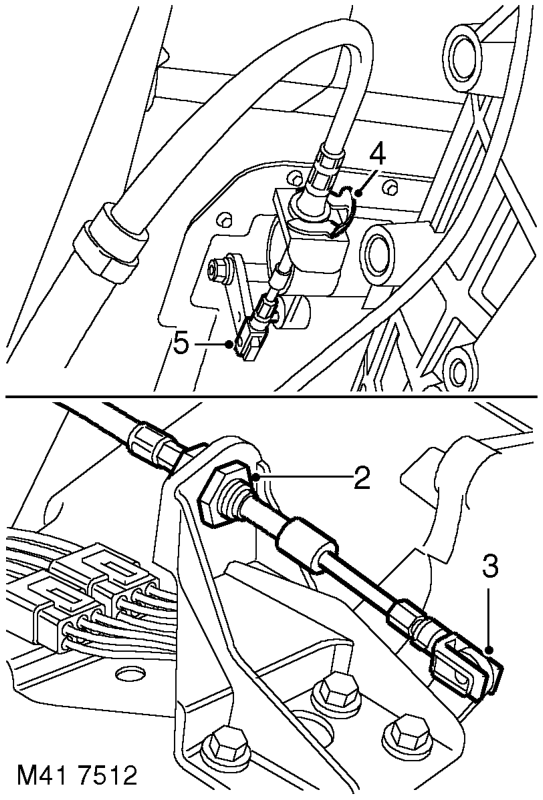

Cable - high/low selector

$% 41.20.43

Remove 1. Raise vehicle on a ramp.

2. Using a suitable crowsfoot spanner, remove lock nut and washer securing outer cable to abutment bracket.
3. Remove clevis pin securing inner cable to transfer box lever and release cable from abutment bracket.
4. Release 'C' clip securing outer cable to high/ low lever abutment bracket.
5. Remove clevis pin securing inner cable to high/ low lever.
