Sensor - oil temperature

Sensor - oil temperature

$% 41.20.80

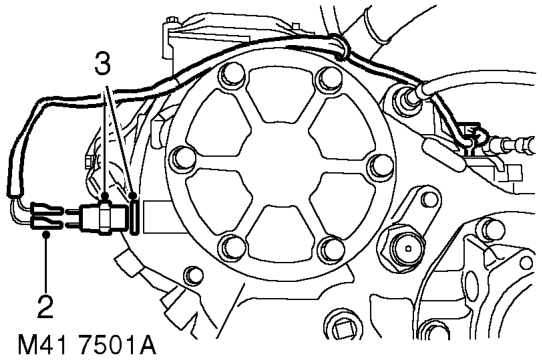

Remove

1. Lower vehicle.

2. Disconnect 2 Lucar connectors from oil temperature sensor.
3. Remove oil temperature sensor and discard sealing washer.

Refit

1. Clean sensor and mating face on transfer box.
2. Fit new sealing washer, position oil temperature sensor and tighten to 42 Nm (31 lbf.ft).
3. Connect Lucar connectors to oil temperature sensor.
4. Lower vehicle.

Switch - high low - warning

$% 41.30.05

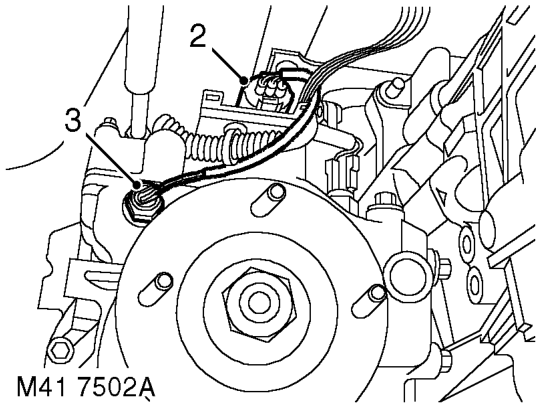

Remove

1. Raise vehicle on a ramp.

2. Release switch multiplug from bracket on transfer box and disconnect from harness.
3. Remove switch from transfer box and discard sealing washer.

Refit

1. Ensure sealing washer, switch thread and mating face on transfer box is clean.
2. Fit sealing washer to switch, fit and tighten switch to transfer box to 26 Nm (19 lbf.ft) .
3. Connect multiplug to harness and fit multiplug to bracket on transfer box.
4. Lower vehicle.
