Gasket - rear output shaft housing

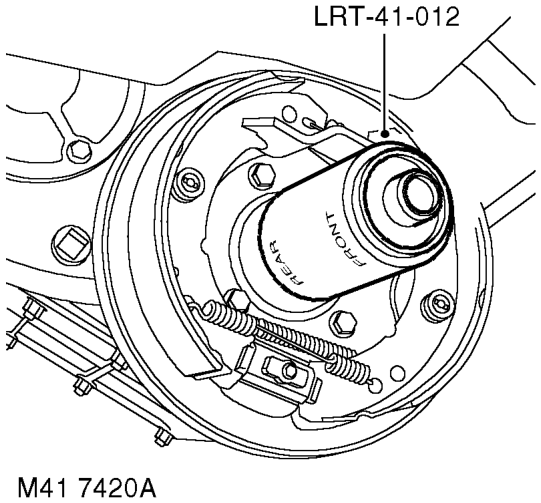

3. Fit new seal using tool LRT-41-012.
4. Position drive flange, fit new felt and steel washers.

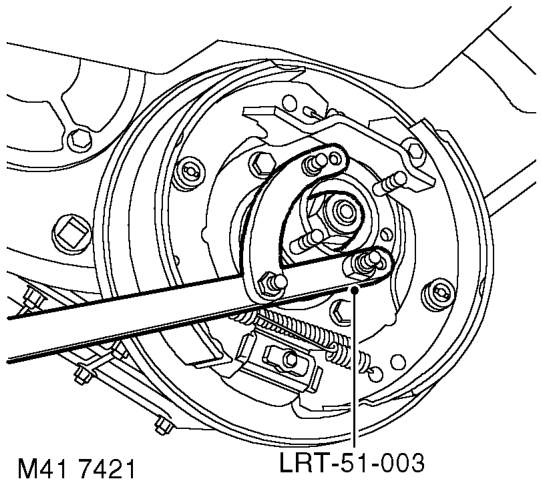

5. Position tool LRT-51-003 and tighten new drive flange nut to 148 Nm (109 lbf.ft).
6. Position handbrake drum and tighten screw.
7. Tighten brake shoe adjuster bolt to 25 Nm (18 lbf.ft) then loosen one and a half turns.
8. Check that brake drum is free to rotate.
9. Fit propeller shaft. PROPELLER SHAFTS, REPAIRS, Propeller shaft - front.
10. Top-up transfer box oil. MAINTENANCE, PROCEDURES, Transfer box.

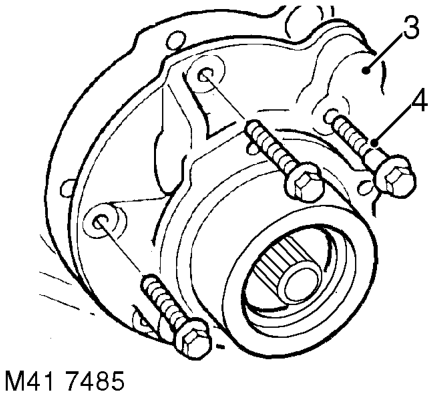

Gasket - rear output shaft housing

$% 41.20.55

Remove

1. Drain transfer gearbox oil. MAINTENANCE, PROCEDURES, Transfer box.
2. Remove rear output shaft seal. TRANSFER BOX - LT230SE, REPAIRS, Seal - rear output shaft.
3. Mark output shaft housing to main casing for assembly purposes.
4. Note position of shoulder bolt, remove 6 bolts securing housing to main casing.

Refit

1. Clean output shaft housing, mating face on main casing and sealant from bolt threads.
2. Apply sealant, Part No. STC 3254 to mating flange on output shaft housing.
3. Fit output shaft housing to main casing.
4. Apply Loctite 290 to bolt threads.
5. Fit output shaft housing bolts and tighten by diagonal selection to 45 Nm (33 lbf.ft).
6. Fit rear output shaft seal. TRANSFER BOX - LT230SE, REPAIRS, Seal - rear output shaft.
7. Fill transfer gearbox with oil. MAINTENANCE, PROCEDURES, Transfer box.
