Land Rover Discovery II (UK)24 · Transfer box - LT230SE
24 · General

Oil seal - input shaft

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Oil seal - input shaft
Transfer box - LT230SEOil seal - input shaft

Oil seal - input shaft

Oil seal - input shaft

$% 41.20.50

Remove

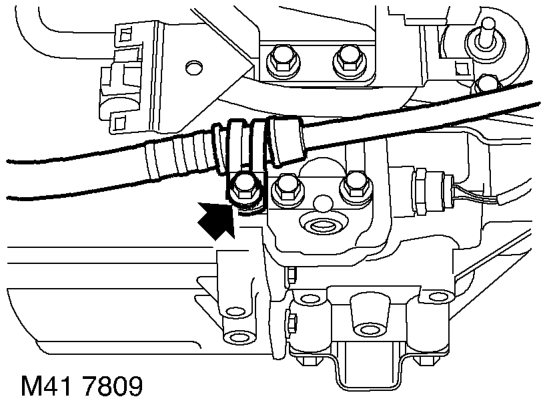

  1. Remove bolt securing outer cable clip to cross shaft housing, remove cable.

Refit

  1. Clean change levers, abutment bracket and clevis pins.
  2. Apply Mobilith SHC 100 grease to inner cable ends and clevis pins.
  3. Position cable and secure to high/low lever abutment bracket with 'C' clip.
  4. Secure inner cable to high/low lever with clevis pin.
  5. Position outer cable clip to cross shaft housing, tighten bolt to 15 Nm (11 lbf.ft).

Refit

  1. Adjust high/low selector cable. TRANSFER BOX - LT230SE, ADJUSTMENTS, Cable - high/low selector.
  2. Remove transfer box. TRANSFER BOX - LT230SE, REPAIRS, Transfer box - V8. TRANSFER BOX - LT230SE, REPAIRS, Transfer box - Diesel.
Oil seal - input shaft – Remove transfer box.  TRANSFER BOX - LT230SE, REPAIRS, Transfer box - V8.  TRANSFER BOX

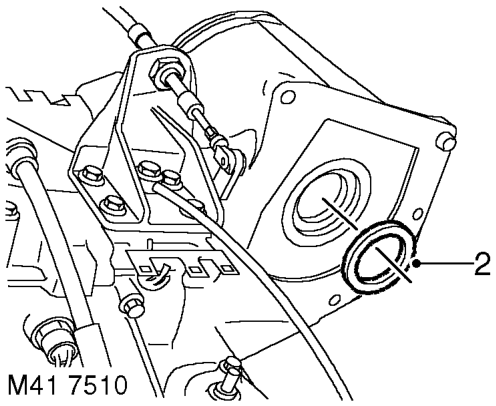

  1. Lever input shaft oil seal from transfer box.

1. Clean oil seal recess in transfer gearbox.

Oil seal - input shaft – 1. Clean oil seal recess in transfer gearbox.
  1. Lubricate new input shaft oil seal with gearbox oil.

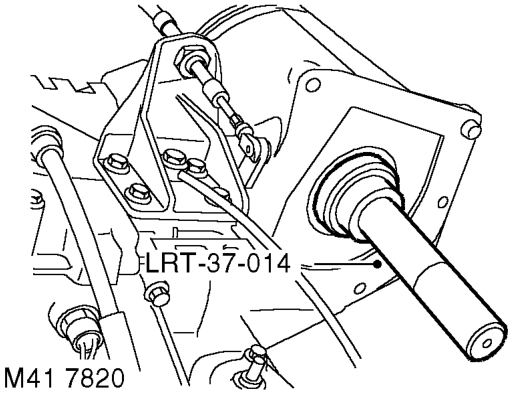

  2. Using tool LRT-37-014 fit input shaft seal to transfer box.
  3. Fit transfer box. TRANSFER BOX - LT230SE, REPAIRS, Transfer box - V8. TRANSFER BOX - LT230SE, REPAIRS, Transfer box - Diesel.
