Land Rover Discovery II (UK)24 · Transfer box - LT230SE
24 · General

Seal - front output shaft

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Seal - front output shaft
Transfer box - LT230SESeal - front output shaft

Seal - front output shaft

$% 41.20.51

Remove

  1. Position vehicle on 4 post ramp.
  2. Remove front propeller shaft. PROPELLER SHAFTS, REPAIRS, Propeller shaft - front.
Seal - front output shaft – Remove front propeller shaft.  PROPELLER SHAFTS, REPAIRS, Propeller shaft - front.

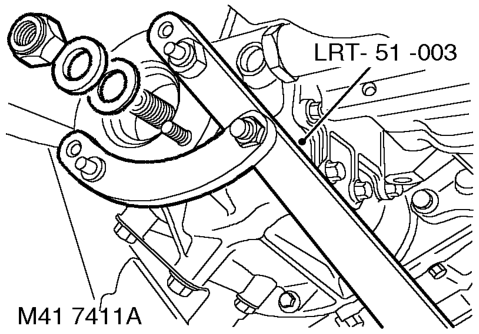

  1. Restrain transfer box drive flange using tool LRT-51-003. Remove and discard drive flange nut, remove and discard steel and felt washers.
Seal - front output shaft – Restrain transfer box drive flange using tool LRT-51-003. Remove and discard drive flange

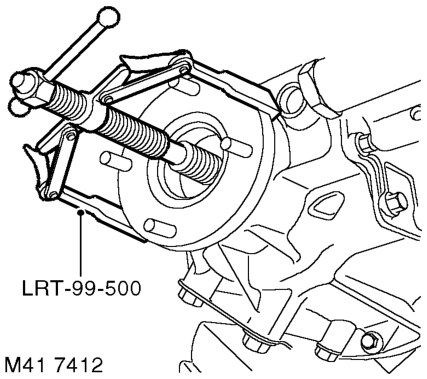

  1. Using tool LRT-99-500 if necessary, remove drive flange from transfer box.
Seal - front output shaft – Using tool LRT-99-500 if necessary, remove drive flange from transfer box.

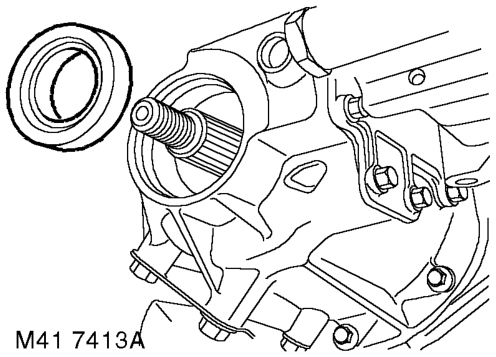

  1. Remove seal from transfer box.

Refit

  1. Clean seal mating faces.
  2. Lubricate seal with gearbox oil.
Seal - front output shaft – Lubricate seal with gearbox oil.

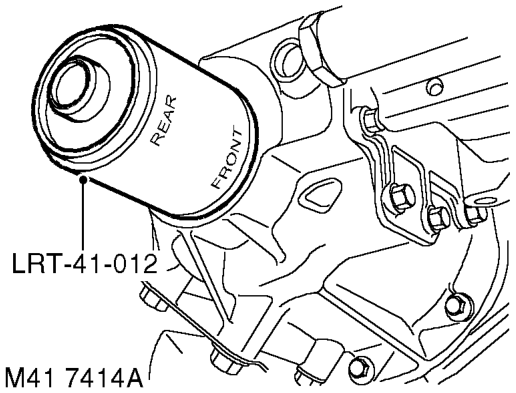

  1. Fit new seal using tool LRT-41-012.
Seal - front output shaft – Fit new seal using tool LRT-41-012.
  1. Position drive flange, fit new felt and steel washers.

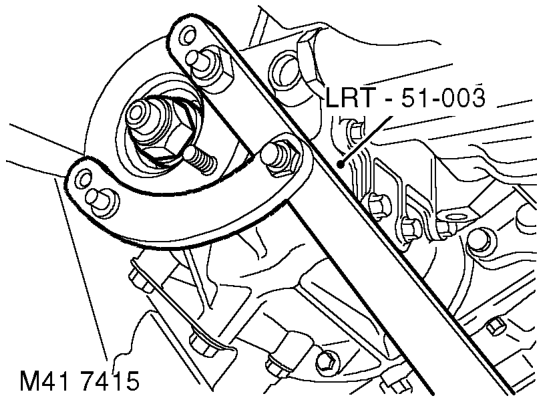

  2. Position tool LRT-51-003 and tighten new drive flange nut to 148 Nm (109 lbf.ft).
  3. Fit propeller shaft. PROPELLER SHAFTS, REPAIRS, Propeller shaft - front.
  4. Top-up transfer box oil. MAINTENANCE, PROCEDURES, Transfer box.
