Land Rover Discovery II (UK)24 · Transfer box - LT230SE
24 · General

Intermediate gear assembly

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul › Intermediate gear assembly
Transfer box - LT230SEIntermediate gear assembly

OVERHAUL

Intermediate gear assembly

$% 41.20.10

Disassembly

Disassembly – $% 41.20.10

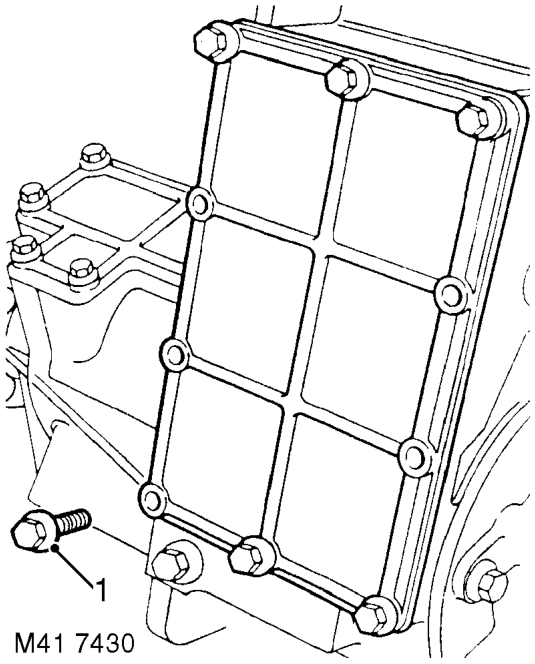

  1. Remove and discard 10 bolts securing bottom cover, remove cover.
Disassembly – Remove and discard 10 bolts securing bottom cover, remove cover.

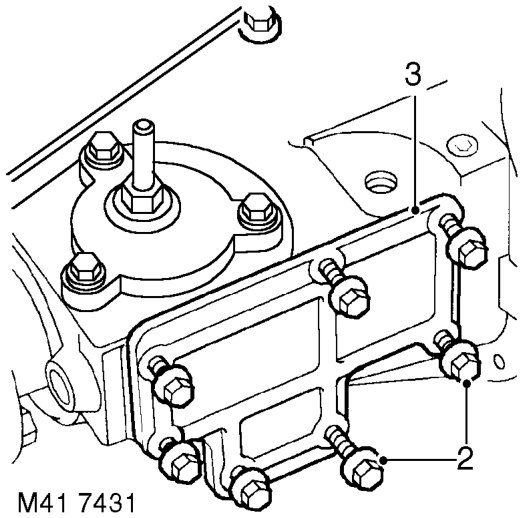

  1. Remove and discard 7 bolts securing differential lock selector side cover.
  2. Remove side cover.
Disassembly – Remove side cover.

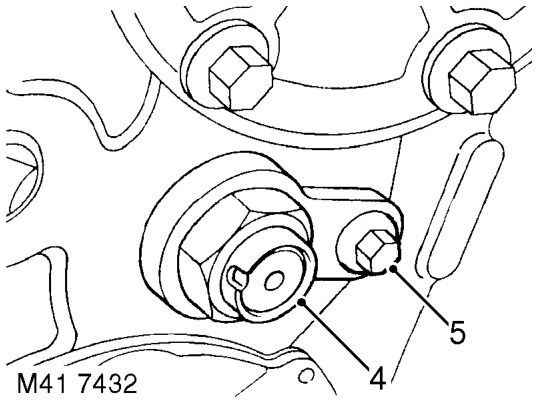

  1. Release staking from intermediate shaft nut, remove and discard nut.
  2. Remove bolt securing intermediate shaft retaining plate, remove plate.
Disassembly – Remove bolt securing intermediate shaft retaining plate, remove plate.

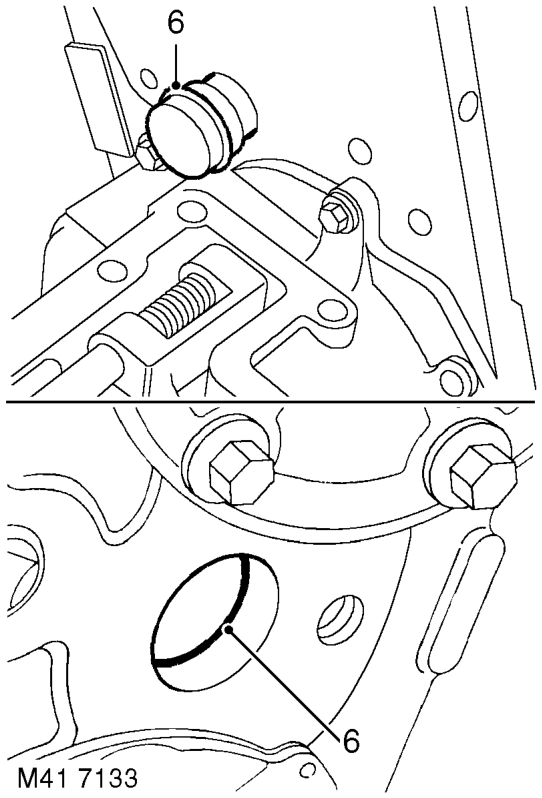

  1. Remove intermediate shaft and discard 2 'O' rings.
