Land Rover Discovery II (UK)24 · Transfer box - LT230SE
24 · General

Reassembly

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul › Reassembly
Transfer box - LT230SEReassembly
Diagram

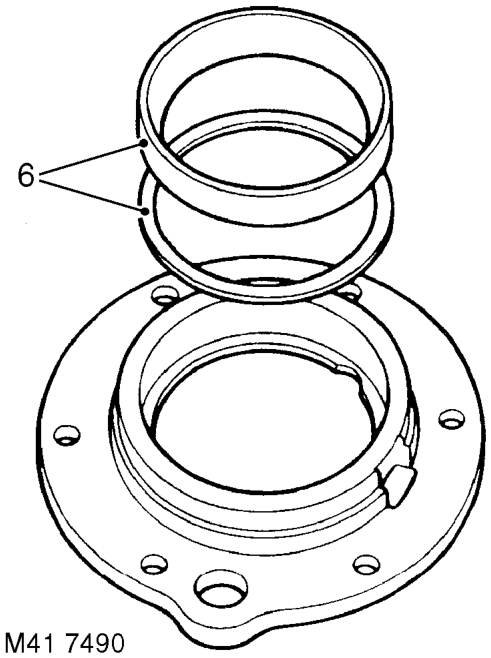

  1. Drift out bearing track from housing and collect selective shim.
Drift out bearing track from housing and collect selective shim.

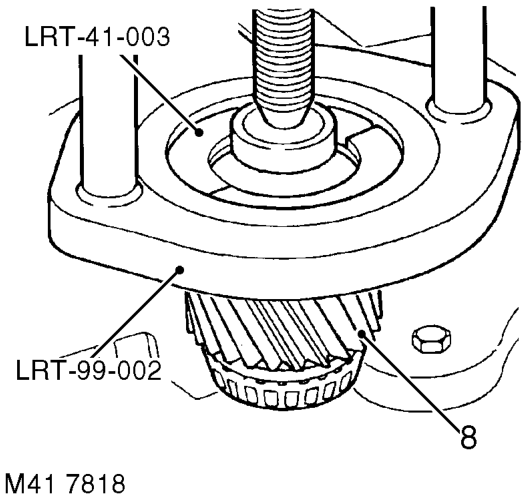

  1. Position tool LRT-99-002 to vice.
  2. Assemble tool LRT-41-003 to bearing, position input gear to hand press and remove bearing.
  3. Repeat procedure for remaining bearing.

Reassembly

  1. Clean input gear, cover/bearing housing and main casing.
Reassembly – Clean input gear, cover/bearing housing and main casing.

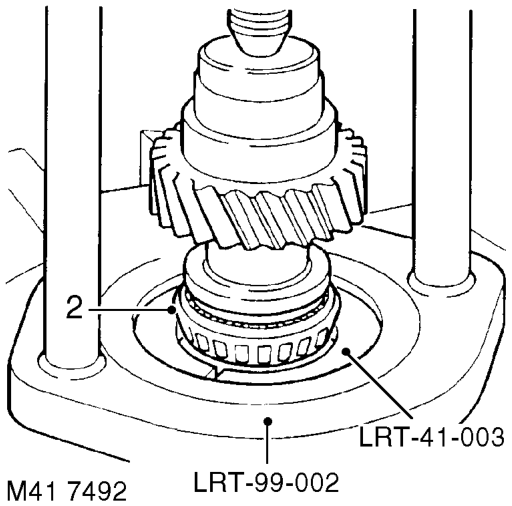

  1. Using tool LRT-99-002 and LRT-41-003 fit new bearings to input gear.
  2. Using a suitable mandrel, fit bearing track to main casing.
  3. Fit a 3.15 mm (0.12 in) thick shim to bearing housing and using a suitable mandrel fit bearing track to housing.

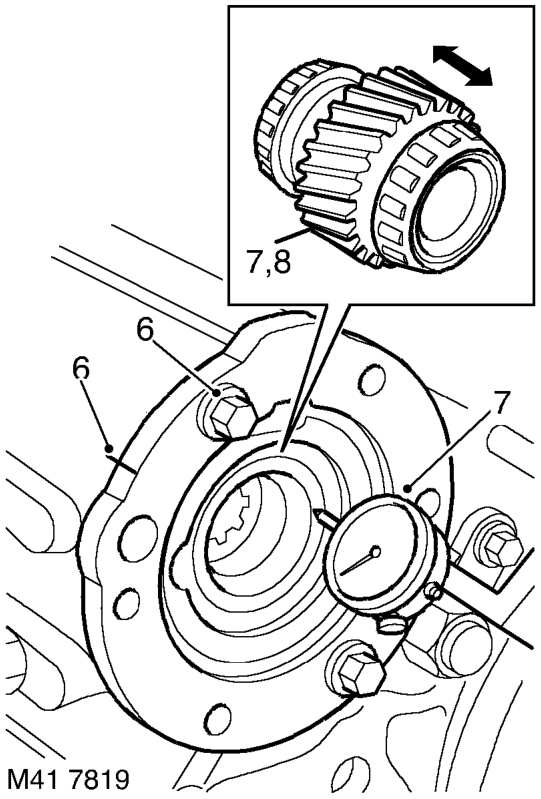

  4. Position input gear to main casing.
Reassembly – Position input gear to main casing.
  1. Fit bearing housing, ensuring reference marks are aligned, secure bearing housing with 2 bolts and tighten to 25 Nm (18 lbf.ft).
