Land Rover Discovery II (UK)24 · Transfer box - LT230SE
24 · General

Reassembly

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul › Reassembly
Transfer box - LT230SEReassembly · page 1 of 2
Diagram

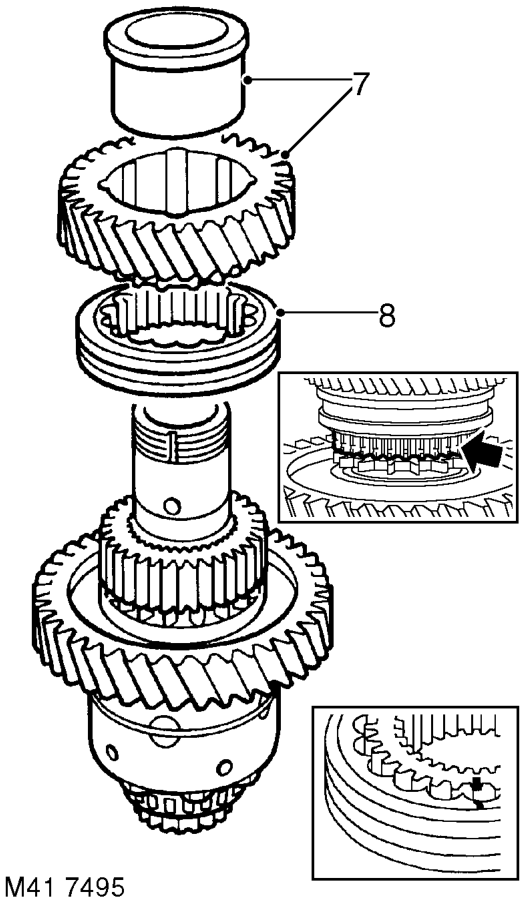

  1. Remove high range gear and bush.
  2. Make suitable alignment marks between high/ low selector sleeve and hub, remove selector sleeve.
Make suitable alignment marks between high/ low selector sleeve and hub, remove selector s

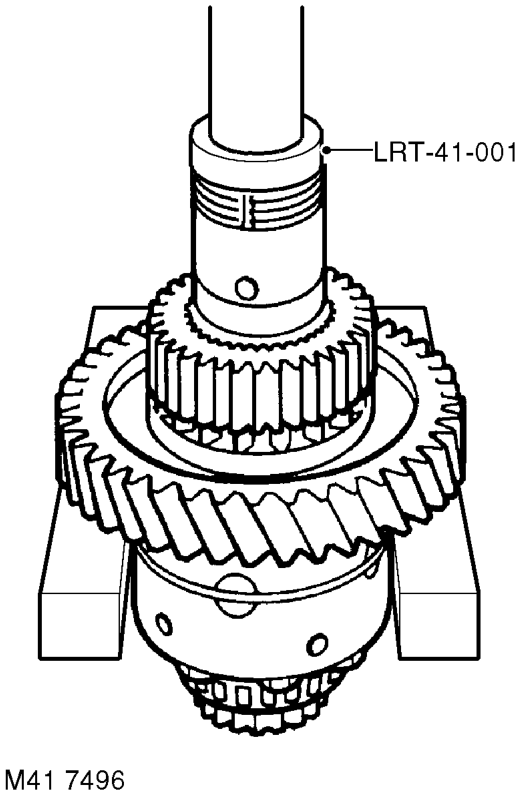

  1. Using a suitable press and thrust button LRT- 41-001remove high/low hub and low range gear.

Reassembly

  1. Clean differential components.
  2. Lubricate components with gearbox oil.
  3. Fit differential in soft jawed vice, and fit low range gear with dog teeth facing uppermost.
  4. Fit high/low hub ensuring that machined groove on hub teeth faces towards low range gear.
  5. Fit high/low selector sleeve ensuring that alignment marks on hub and sleeve are together.
  6. Fit bush to high range gear ensuring collar is uppermost.
  7. Fit high range gear and bush onto shaft.
