Transfer box - LT230SEInput gear/bearing

Input gear/bearing

$% 41.20.60

Disassembly

Disassembly – $% 41.20.60

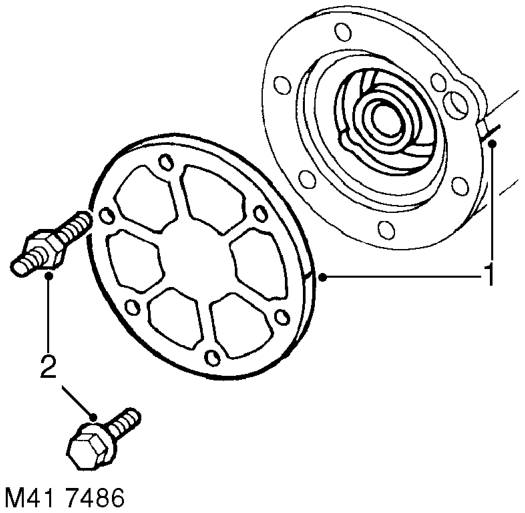

  1. Make alignment marks between cover plate/ bearing housing and main casing.
  2. Remove 5 bolts and stud nut securing cover/ bearing housing to main casing. Remove cover and bearing housing.
Disassembly – Remove 5 bolts and stud nut securing cover/ bearing housing to main casing. Remove cover a

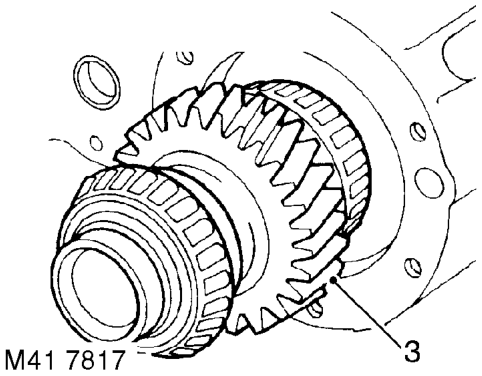

  1. Remove input gear assembly.
Disassembly – Remove input gear assembly.

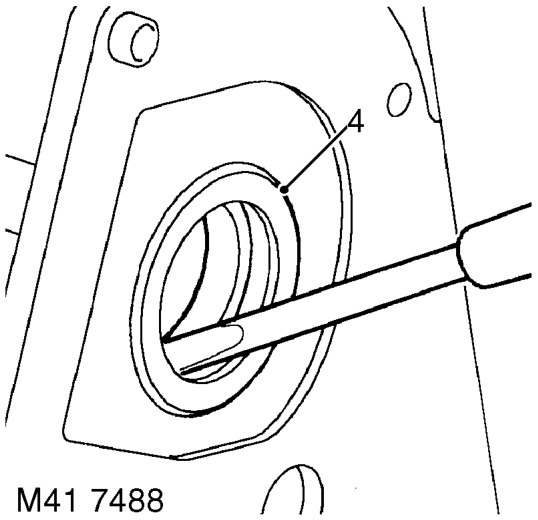

  1. Remove and discard oil seal from main casing.
Disassembly – Remove and discard oil seal from main casing.

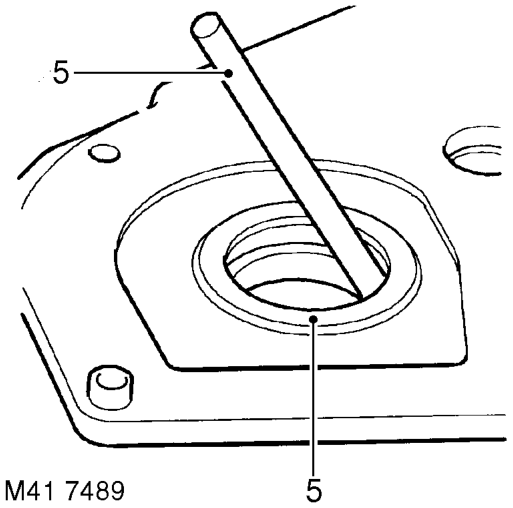

  1. Drift out bearing track from main casing.
