Land Rover Discovery II (UK)24 · Transfer box - LT230SE
24 · General

Reassembly

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul › Reassembly
Transfer box - LT230SEReassembly · page 1 of 9
Diagram

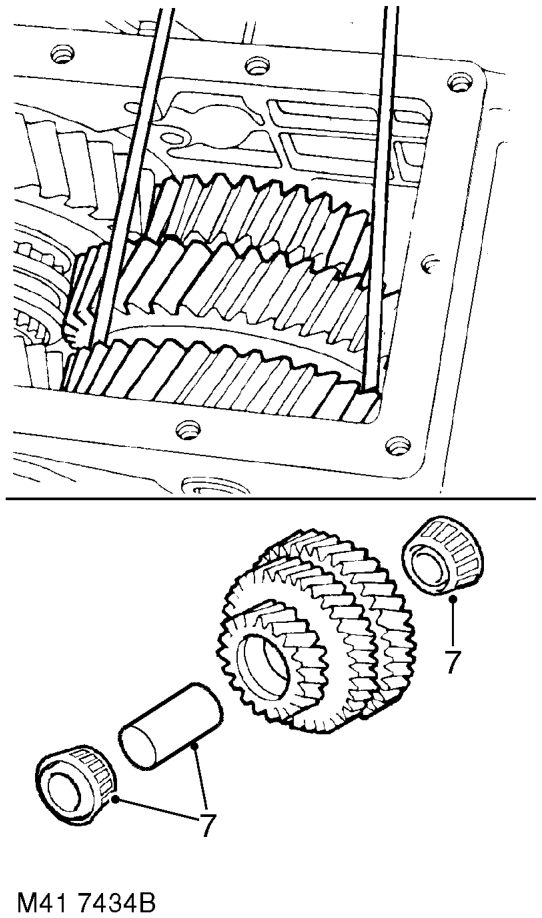

  1. Remove intermediate gear assembly and collect bearings and selective spacer.
Remove intermediate gear assembly and collect bearings and selective spacer.

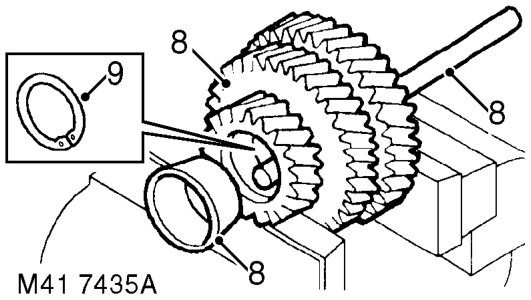

  1. Secure gear assembly in a soft jawed vice and using a suitable drift, remove and discard bearing tracks.
  2. Up to 03 MY: Remove and discard circlips.

Reassembly

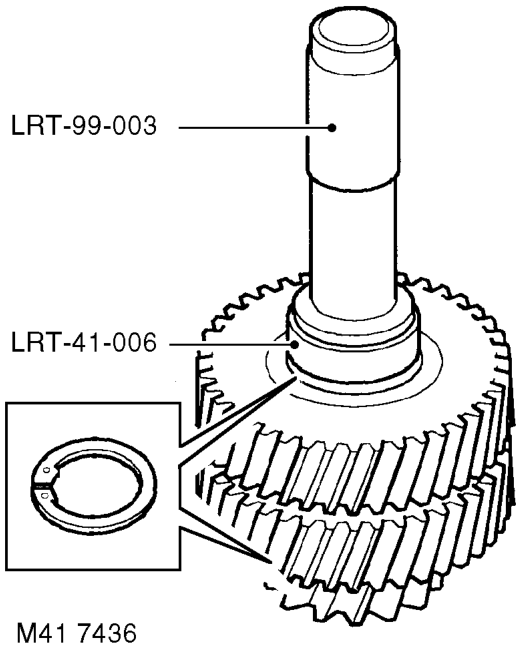

  1. Clean gears, bearings, circlips and shaft. Note: Intermediate gear cluster and bearing assemblies fitted to 03 MY transfer boxes may be fitted as replacements to pre 03 MY transfer boxes.
Reassembly – Clean gears, bearings, circlips and shaft. Note: Intermediate gear cluster and bearing ass

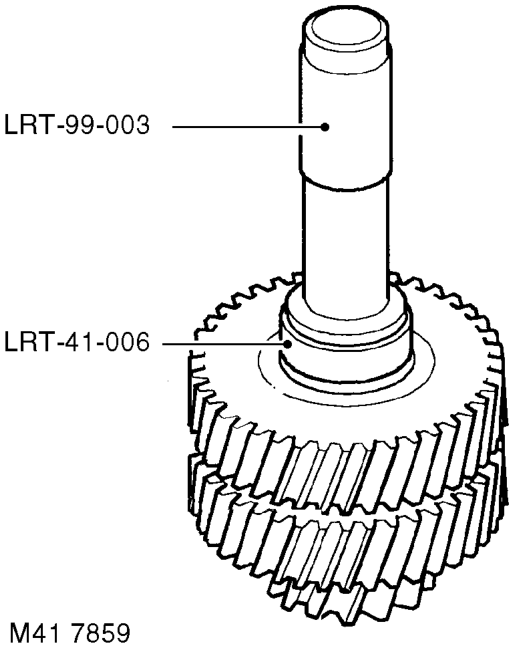

  1. Up to 03 MY: Fit new circlips and using tools LRT-99-003 and LRT-41-006 fit bearing tracks to intermediate gear, ensuring that the bearing tracks are fully seated against the circlips.
Reassembly – Up to 03 MY: Fit new circlips and using tools LRT-99-003 and LRT-41-006 fit bearing tracks
  1. 03 MY onwards: Using tools LRT-99-003 and LRT-41-006, fit bearing tracks to intermediate gears ensuring that tracks are fully seated against shoulders in gears.
