Reassembly (page 2 of 2)

Make

Land Rover

Model

Discovery II (UK)

Section

Overhaul

Transfer box - LT230SEReassembly · page 2 of 2

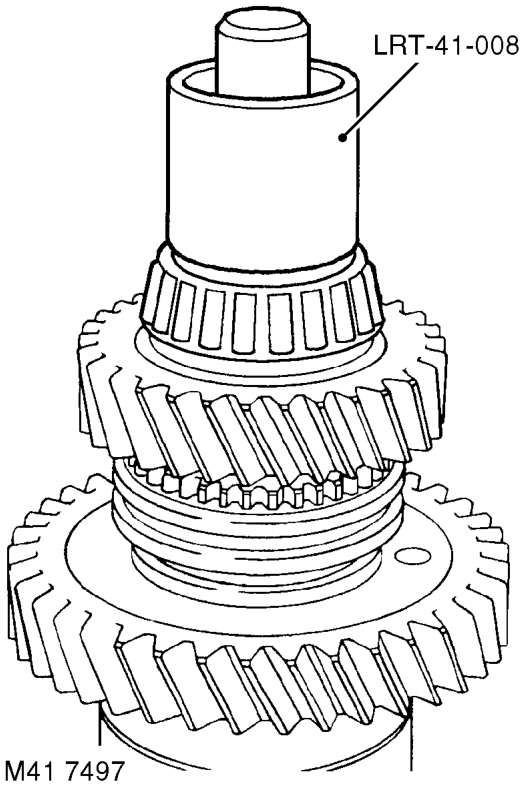

8. Fit rear bearing using tool LRT-41-008.

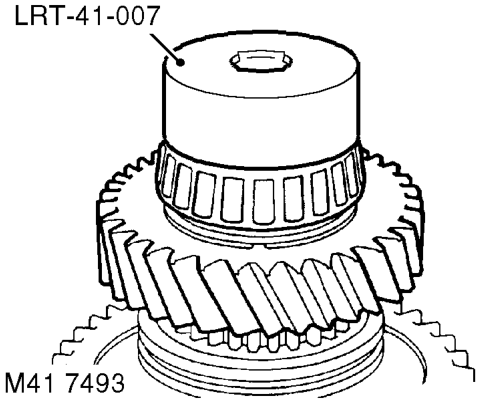

9. Fit new bearing retaining nut and using tool LRT-41-007, tighten to 72 Nm (53 lbf.ft).
10. Using a suitable drift, stake collar of nut into differential shaft recess.
11. Fit high/low selector shaft detent ball and spring.
12. Apply Loctite 290 sealant to threads of detent plug.
13. Fit and tighten plug, then loosen 2 complete turns.
14. Fit differential. TRANSFER BOX - LT230SE, OVERHAUL, Differential assembly.
