Transfer box - Diesel (page 2 of 2)

Make

Land Rover

Model

Discovery II (UK)

Section

Repairs

Transfer box - LT230SETransfer box - Diesel · page 2 of 2

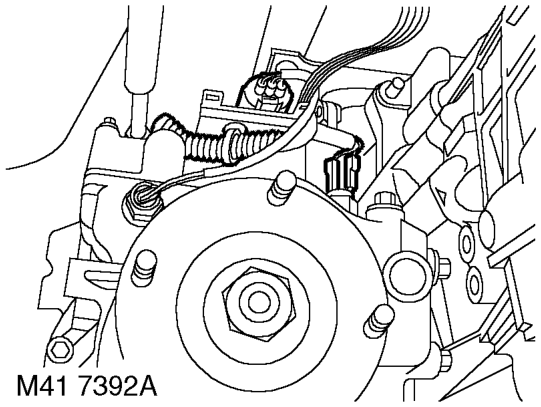

12. If fitted: Disconnect 2 Lucars from differential lock switch and disconnect multiplug from reverse light switch.

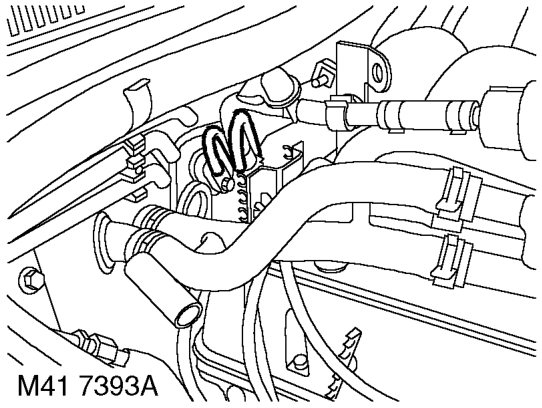

13. Remove cable tie and multi plug from bracket on transfer box.

14. Release transfer box breather pipe from bulkhead clip.

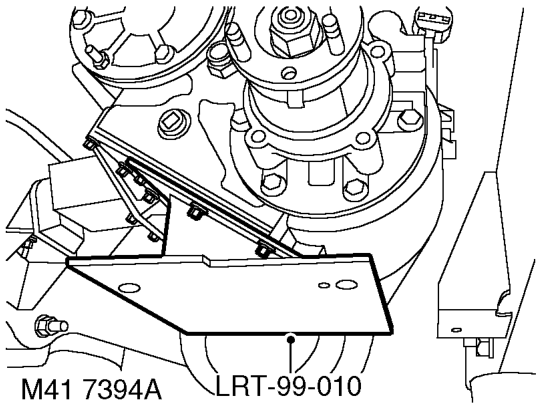

15. Remove 4 bolts from transfer box bottom plate, position support plate LRT-99-010 to transfer box and tighten bolts.
16. Position gearbox support jack and secure support plate to jack using 4 bolts.

17. Remove 3 bolts securing transfer box to gearbox.

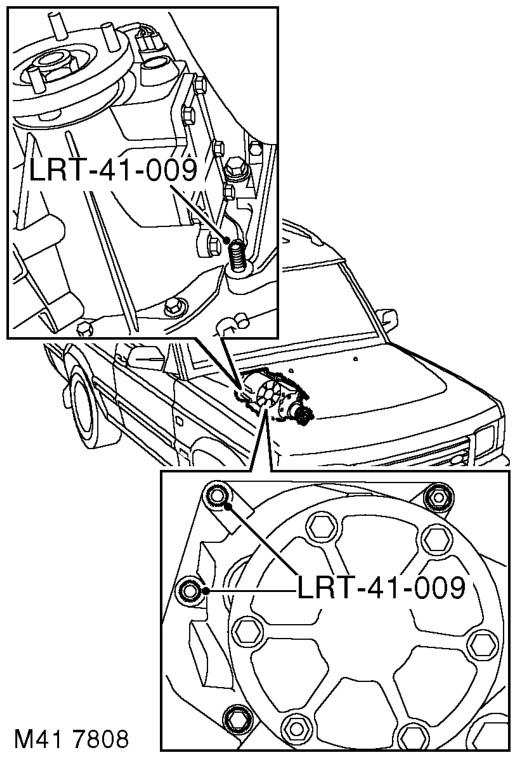

18. Fit 3 guide studs LRT-41-009 through transfer box bolt holes to support it during removal.
19. Remove 2 bolts and nut securing transfer box to gearbox. CAUTION: If securing stud is removed during this operation, it must be discarded and a new stud fitted.
20. Position a jack to support gearbox and engine.

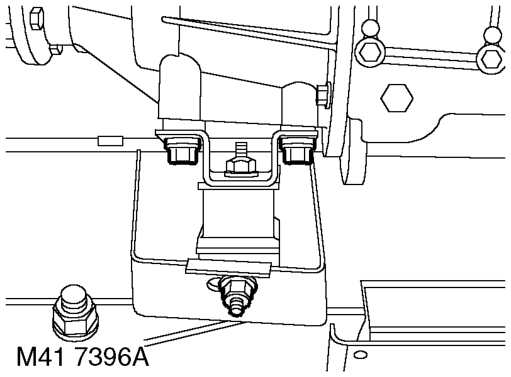

21. Remove 4 bolts and nut, remove gearbox RH mounting.
22. With assistance, remove transfer box from gearbox.
23. Remove input shaft oil seal. TRANSFER BOX - LT230SE, REPAIRS, Oil seal - input shaft.
