Wipers and washersJet - washer - rear screen

Jet - washer - rear screen

$% 84.30.09

Remove

  1. Remove spare wheel.
  2. Remove rear screen wiper blade.

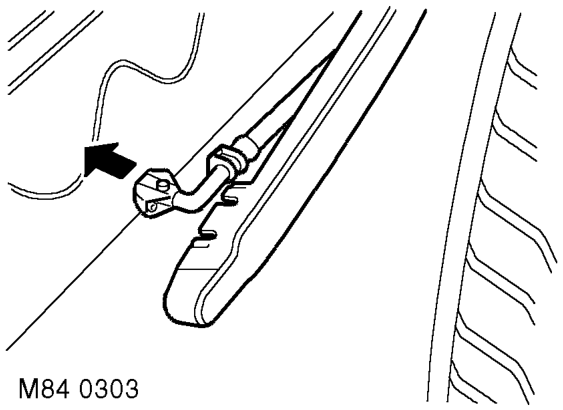

Jet - washer - rear screen – Remove rear screen wiper blade.
  1. Release washer jet and washer jet tube from wiper arm.
  2. Release washer jet from washer jet tube and remove jet.

Refit

  1. Fit new washer jet to washer jet tube and fit to wiper arm.
  2. Fit rear screen wiper blade.
  3. Fit spare wheel.

Switch - rear wash

$% 84.30.27

Remove

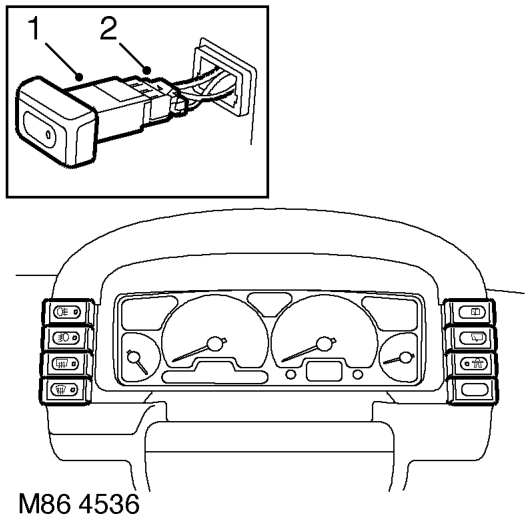

Switch - rear wash – $% 84.30.27
  1. Carefully remove switch from instrument cowl.
  2. Disconnect multiplug and remove switch.

Refit

  1. Position new switch and connect multiplug.
  2. Carefully push switch into instrument cowl.
