Switch - wiper - rear - up to 03MY

$% 84.35.33

Remove

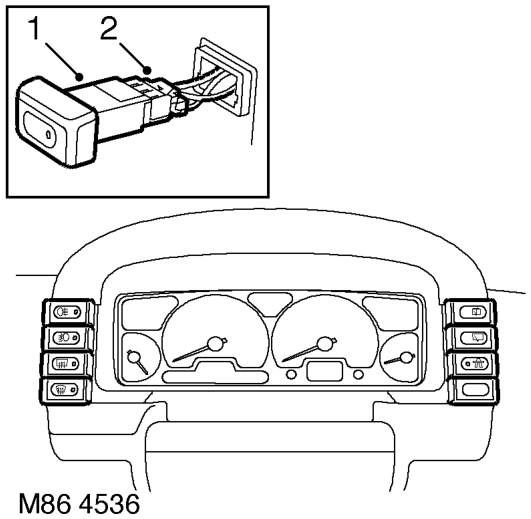

Switch - wiper - rear - up to 03my – $% 84.35.33
  1. Carefully remove switch from instrument cowl.
  2. Disconnect multiplug and remove switch.

Refit

  1. Position new switch and connect multiplug.
  2. Carefully push switch into instrument cowl.

Switch - wiper - rear - from 03MY

$% 843533

Remove

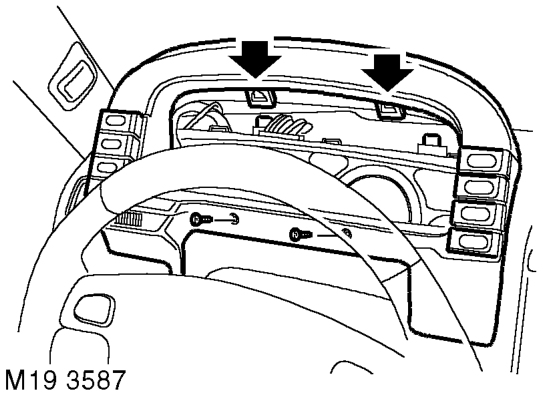

Switch - wiper - rear - from 03my – $% 843533
  1. Remove 2 screws securing instrument cowl to fascia and release the cowl from the retaining clips.
Switch - wiper - rear - from 03my – Remove 2 screws securing instrument cowl to fascia and release the cowl from the retaining

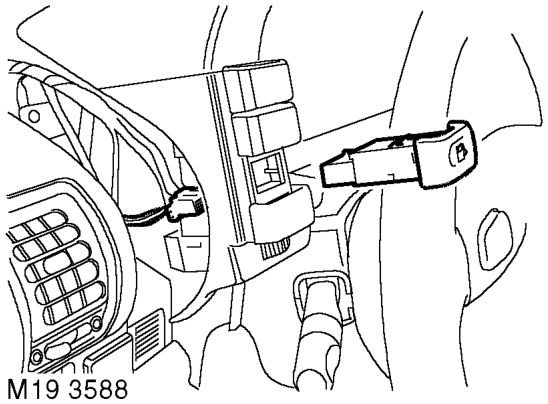

  1. Disconnect multiplug from the rear wiper switch.
  2. Remove the rear wiper switch from the instrument cowl.

Refit

  1. Fit and secure the rear wiper switch to the instrument cowl and connect the multiplug.
  2. Fit the instrument cowl to the fascia and secure with screws.
