Reservoir - washer - from 03MY

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Reservoir - washer - from 03MY
Wipers and washersReservoir - washer - from 03MY

Reservoir - washer - from 03MY

$% 84.10.03

Remove

  1. Remove the front bumper assembly. EXTERIOR FITTINGS, REPAIRS, Bumper assembly - front.

Refit

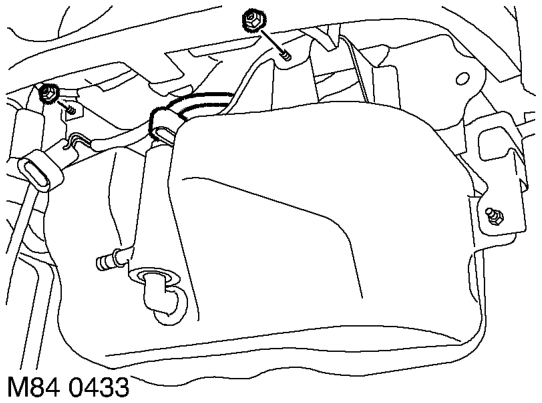

Reservoir - washer - from 03my – Remove the front bumper assembly.  EXTERIOR FITTINGS, REPAIRS, Bumper assembly - front.
  1. Disconnect multiplug from the headlamp washer pump.
  2. Place a container beneath vehicle to collect any spillage.

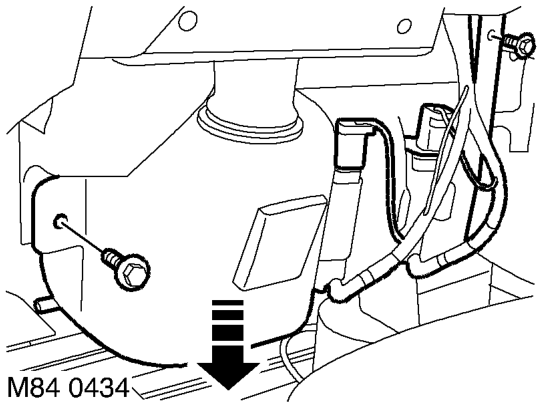

Reservoir - washer - from 03my – Place a container beneath vehicle to collect any spillage.
  1. Noting fitted position disconnect multiplugs and washer hoses from the front and rear windscreen washer pumps.
  2. Remove 2 nuts and 2 bolts securing the washer reservoir to the body.
  3. Release washer reservoir from filler neck. Remove the washer reservoir.
  4. Remove and discard the washer reservoir filler neck seal. NOTE: Do not carry out further dismantling if component is removed for access only.

8. Remove washer pumps from washer reservoir and discard the seals.

  1. Clean washer pump and filler neck seal recesses.
  2. Fit new washer pump and filler neck seals to the washer reservoir.
  3. Fit and secure washer pumps to the washer reservoir.
  4. Fit washer reservoir to the filler neck, fit and tighten the nuts and bolts.
  5. Connect multiplugs and washer hoses to the windscreen washer pumps.
  6. Remove container from beneath the vehicle.
  7. Fit the front bumper assembly. EXTERIOR FITTINGS, REPAIRS, Bumper assembly - front.
