Reservoir - washer - up to 03MY

_REPAIRS

Reservoir - washer - up to 03MY

$% 84.10.03

Remove

1. Remove front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - up to 03MY.
2. Remove front bumper assembly. EXTERIOR FITTINGS, REPAIRS, Bumper assembly - front.

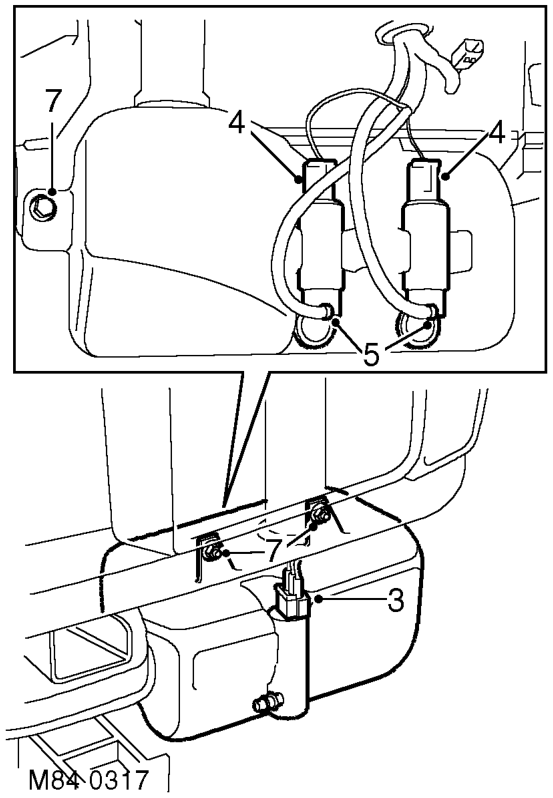

3. Disconnect multiplug from headlamp washer pump.
4. Identify multiplugs for refit and disconnect from rear screen and windscreen washer pumps.
5. Identify hoses for refit and disconnect hoses from rear screen and windscreen washer pumps.
6. Release clip securing washer hose to headlamp washer pump.
7. Remove 2 nuts and 1 bolt securing reservoir, release reservoir from filler neck and remove reservoir assembly.
8. Remove filler neck grommet. NOTE: Do not carry out further dismantling if component is removed for access only.

9. Remove fluid level indicator.

10. Remove washer pumps from reservoir, remove and discard pump seals.

Refit 1. Use new seals and fit washer pumps to new reservoir.

2. Fit filler neck grommet to reservoir.
3. Fit level indicator into filler neck.
4. Fit reservoir assembly and secure with nuts and bolt.
5. Connect hoses to rear screen pump, windscreen washer pump and headlamp washer pump. Secure hoses with clips.
6. Identify and connect multiplugs to washer pumps.
7. Fit front bumper assembly. EXTERIOR FITTINGS, REPAIRS, Bumper assembly - front.
8. Fit front grille. EXTERIOR FITTINGS, REPAIRS, Grille - front - up to 03MY.
9. Refill reservoir MAINTENANCE, PROCEDURES, Wipers and washers.
