Engine - K SeriesTiming belt - camshaft - ’k’ series · page 2 of 2
- Using a socket on the crankshaft pulley bolt, rotate crankshaft clockwise to align the camshaft gear timing marks with mark on backplate.
CAUTION: Never use the camshaft gear, gear retaining bolts or timing belt to rotate the engine.

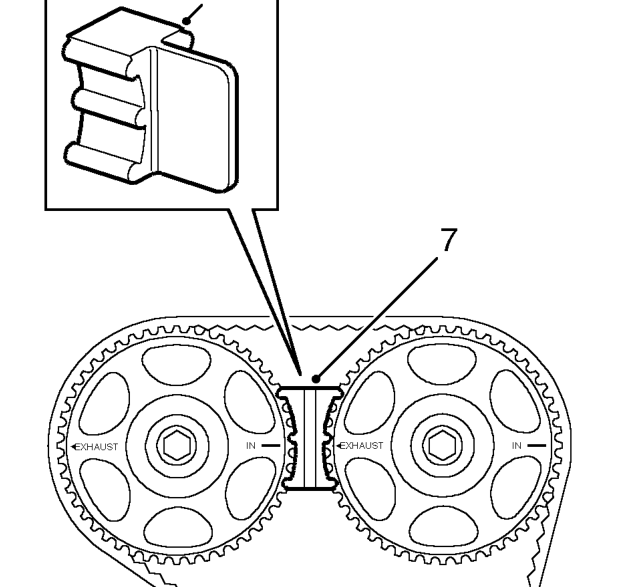

- Fit camshaft gear alignment tool LRT-12-134.

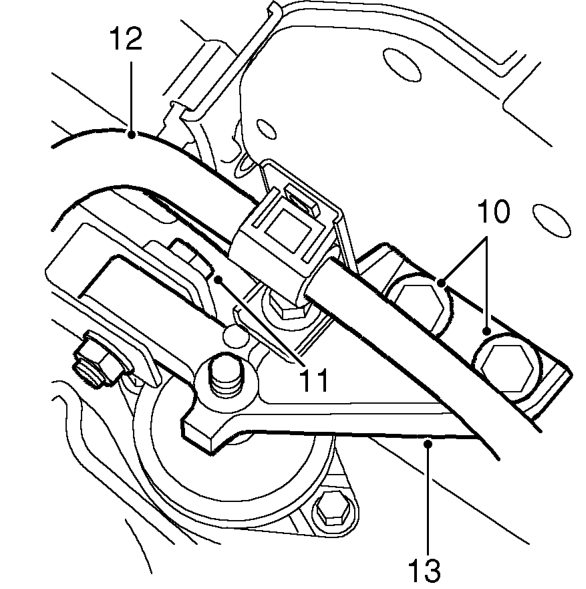

- Fit wooden block to jack and position jack to support engine.
- Remove 2 bolts securing engine RH mounting bracket to engine.
- Remove through bolt and nut securing RH mounting bracket to upper tie rod.
- Release PAS cooling pipes and position aside.
- Remove engine RH mounting bracket.
- Remove camshaft timing belt lower cover. See this section.
