Models with air conditioning

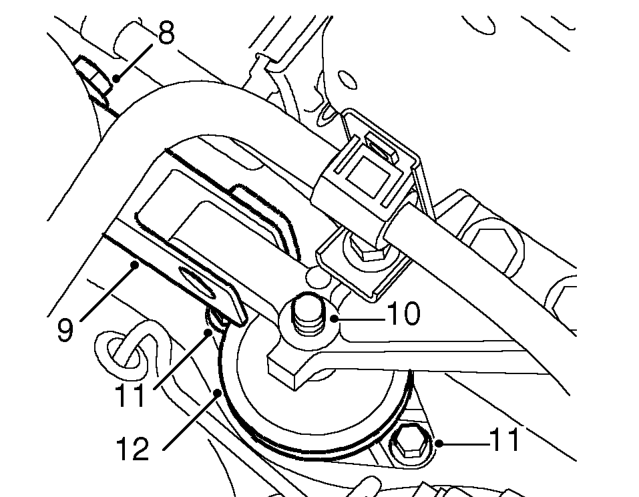

8. Slacken bolt securing engine upper tie bar to bracket on body.
9. Raise upper tie bar to clear engine mounting bracket.
10. Raise RH side of engine on jack sufficiently only to clear RH engine mounting stud.
11. Remove 2 bolts securing RH engine mounting to wing valance.
12. Remove RH engine mounting.

Refit

1. Fit RH engine mounting and tighten bolts to 45 Nm.
2. Lower engine onto RH mounting.
3. Fit upper tie bar to engine mounting bracket and tighten both bolts securing tie bar to 80 Nm.
4. Remove jack from under engine.
5. Fit PAS hose bracket to engine mounting stud and tighten nut to 80 Nm.

Models with air conditioning

6. Fit air conditioning hose clip to PAS hose support bracket and secure with bolt.

All models

7. Fit underbelly panel. See BODY, Exterior fittings.
8. Fit acoustic cover. See ENGINE, Repairs.

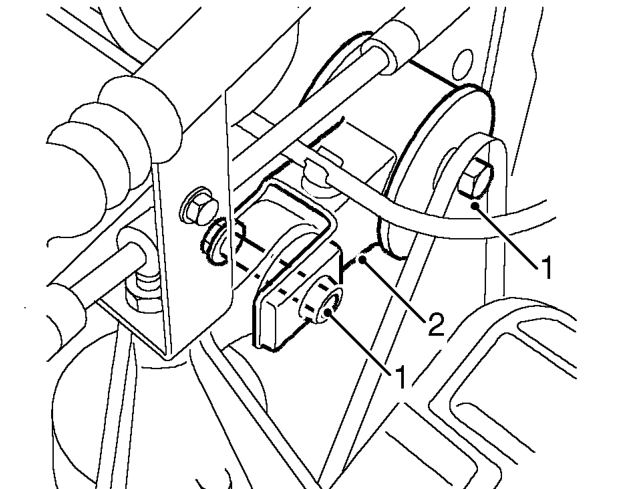

TIE ROD - UPPER

Service repair no - 12.45.16

Remove

1. Remove engine acoustic cover. See ENGINE, Repairs.

2. Remove 2 bolts securing tie rod.
3. Remove tie rod.

Refit

1. Fit tie rod and tighten bolts to 80 Nm.
2. Fit acoustic cover. See ENGINE, Repairs.
