Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Cover - engine acoustic

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Cover - engine acoustic
Engine - L SeriesCover - engine acoustic

Refit

  1. Clean camshaft cover and mating face on camshaft carrier.
  2. Fit NEW gasket to camshaft cover.

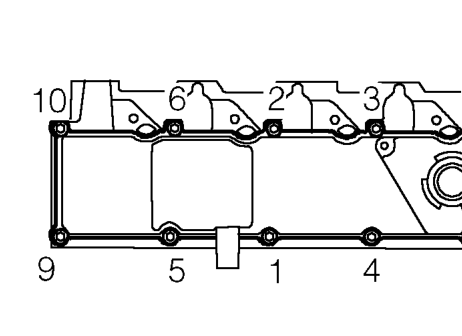

Fit NEW gasket to camshaft cover.
  1. Fit camshaft cover and tighten bolts in sequence shown to 9 Nm.
  2. Align brake servo vacuum pipe to camshaft cover and secure with bolt.
  3. Fit seal to oil filler neck.
  4. Fit oil filler cap.
  5. Connect engine breather hose to camshaft cover and tighten clip.
  6. Fit plenum chamber. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

COVER - ENGINE ACOUSTIC

Service repair no - 12.30.50

Remove

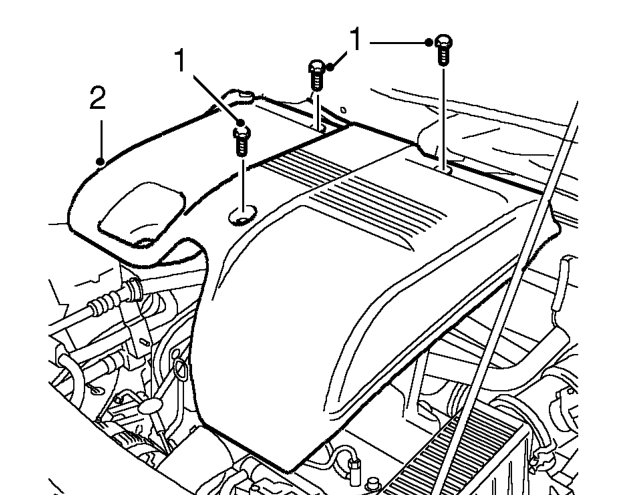

Cover - engine acoustic – Service repair no - 12.30.50
  1. Remove 3 bolts securing acoustic cover to engine.
  2. Remove engine acoustic cover.

Refit

  1. Fit acoustic cover.
  2. Fit and tighten bolts.
