Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Models fitted with air conditioning.

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Models fitted with air conditioning.
Engine - L SeriesModels fitted with air conditioning. · page 1 of 2
Diagram

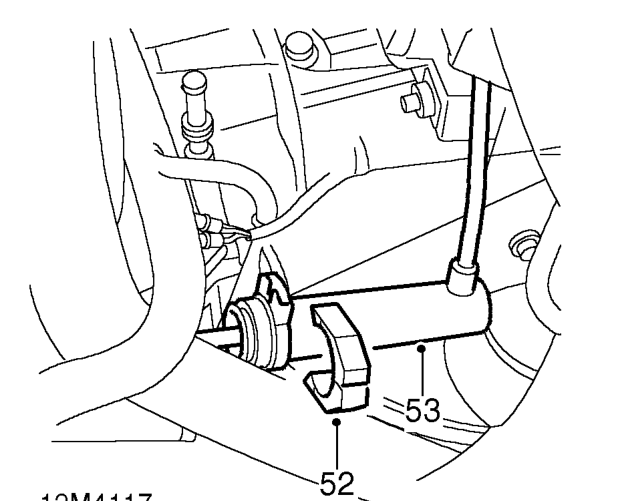

  1. Remove ’C’ clip securing clutch slave cylinder.
  2. Remove clutch slave cylinder from bracket and position aside.
Remove clutch slave cylinder from bracket and position aside.

Models fitted with air conditioning.

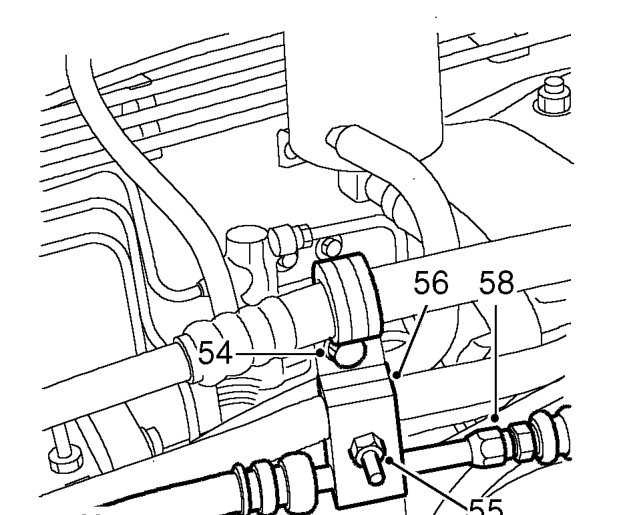

  1. Remove screw securing A/C pipe clip to bracket on RH engine mounting.

All models.

  1. Remove nut and bolt securing PAS pipe clamp to bracket on RH engine mounting.
  2. Remove clamp.
  3. Position container to collect PAS fluid spillage.
  4. Loosen union and disconnect PAS high pressure pipes at bracket on RH engine mounting.
  5. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

All models. – Remove and discard ’O’ ring.

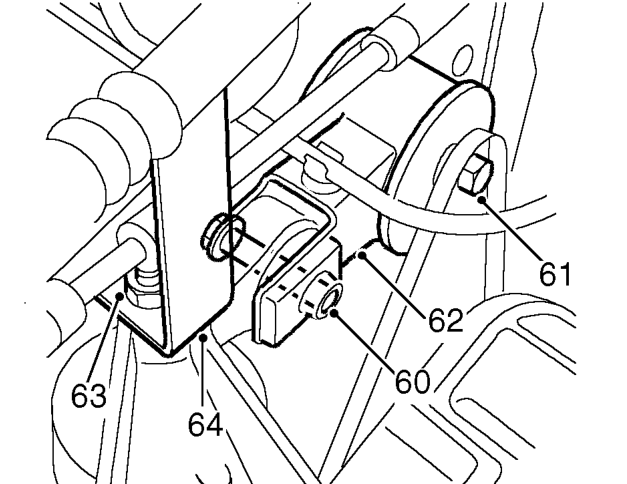

  1. Remove bolt securing upper tie rod to RH engine mounting bracket.
  2. Slacken bolt securing upper tie rod to body.
  3. Raise tie rod clear of engine mounting.
  4. Remove nut securing bracket to RH engine mounting.
  5. Remove PAS hose support bracket.
