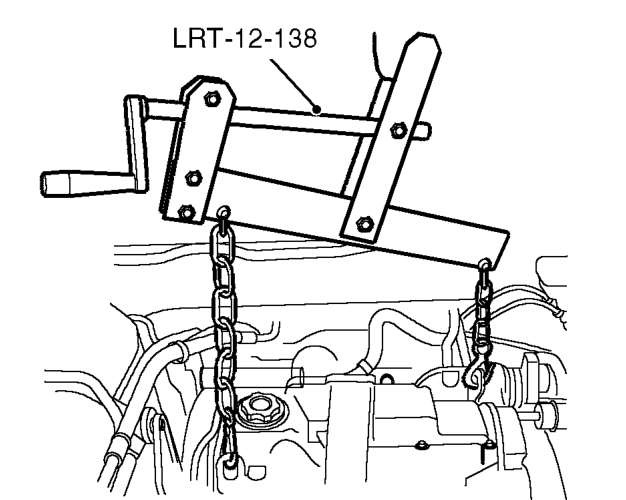

65. Fit LRT-12-138 to suitable lifting chains, and connect to lifting eyes on engine.
66. Take weight of engine on lifting chains.

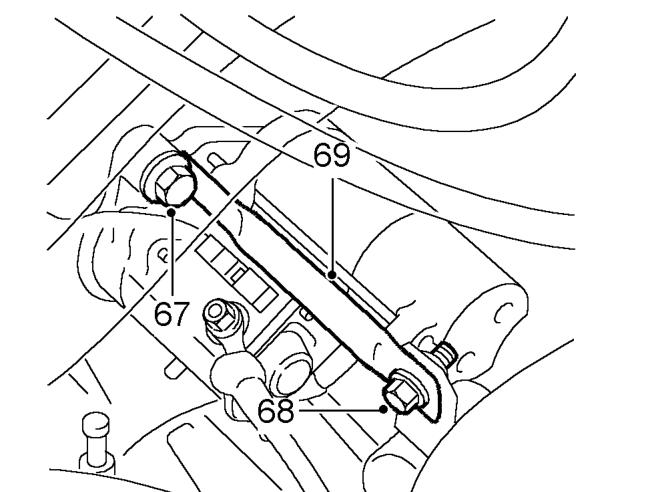

67. Remove bolt securing LH engine mounting support strut to starter motor.
68. Remove bolt securing LH engine mounting support strut to mounting.
69. Remove LH engine mounting support strut.

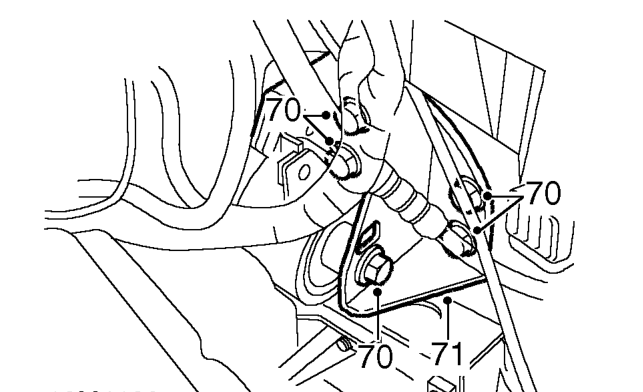

70. Remove through bolt from LH engine mounting. remove 4 bolts securing LH engine mounting bracket to body.
71. Remove LH engine mounting bracket.
72. With assistance, lower engine and gearbox from vehicle.
