SEAL - CAMSHAFT - REAR

Service repair no - 12.13.06

Remove

  1. Remove FIP timing belt cover. See this section.
  2. Remove camshaft timing gear upper cover. See this section.

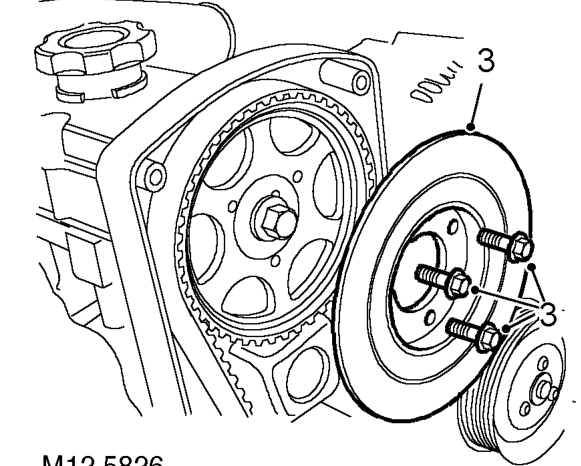

Seal - camshaft - rear – Remove camshaft timing gear upper cover. See this section.
  1. Remove and discard 3 Torx screws securing damper to camshaft gear, remove damper.

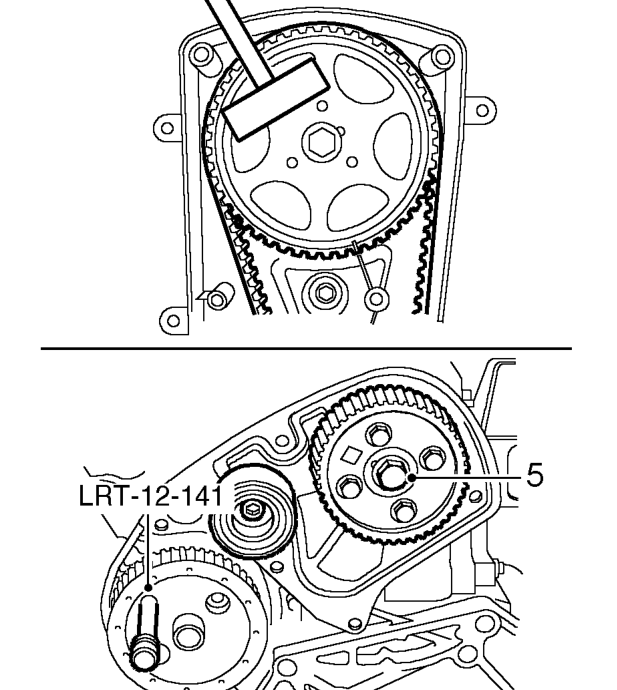

Seal - camshaft - rear – Remove and discard 3 Torx screws securing damper to camshaft gear, remove damper.
  1. Restrain camshaft gear using tool LRT-12-132.
  2. Loosen but do not remove FIP belt drive gear bolt.
  3. Remove FIP belt. See this section.

CAUTION: Do not rotate crankshaft or FIP with timing belt removed. Do not remove locking pin inserted during FIP belt removal from FIP gear.
