Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Seal - camshaft - rear (page 3 of 3)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - L SeriesSeal - camshaft - rear · page 3 of 3

Refit

  1. Clean seal recess and camshaft.
Clean seal recess and camshaft.

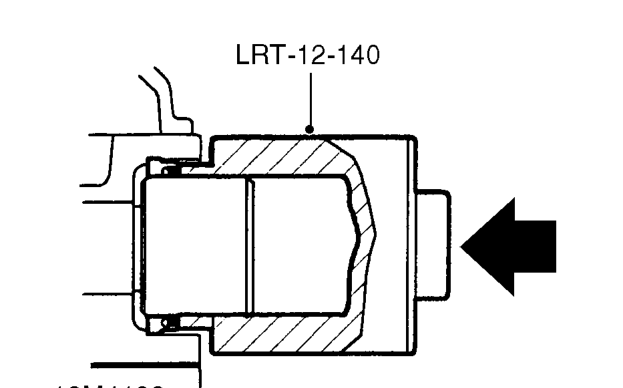

  1. Ensure seal fitting tool LRT-12-140 is clean.
  2. Fit camshaft oil seal using LRT-12- 140.

CAUTION: Oil seal must be fitted dry.

  1. Fit FIP drive belt rear cover.
  2. Fit bolts securing FIP drive belt rear cover, tighten bolts to 8 Nm.
  3. Fit drive belt tensioner, fit but do not tighten Allen bolt.
  4. Clean camshaft gear and mating face.
  5. Fit FIP gear to camshaft.

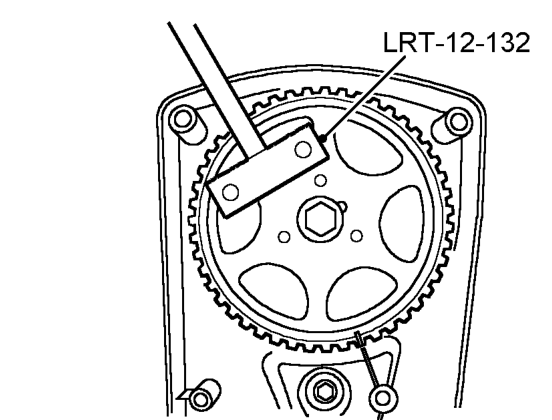

Fit FIP gear to camshaft.
  1. Restrain camshaft gear using tool LRT-12-132.
  2. Apply clean engine oil to threads of new bolt. Fit FIP gear bolt and tighten to 20 Nm. + 90°

CAUTION: Ensure camshaft does not rotate.

  1. Fit FIP timing belt. See this section.
  2. Fit FIP timing belt cover. See this section.
  3. Fit damper to camshaft gear ensuring marks are aligned, fit new Torx screws and tighten to 10 Nm.
  4. Fit camshaft timing gear upper cover. See this section.
