Engine - L SeriesAll models · page 1 of 6

All models

All models

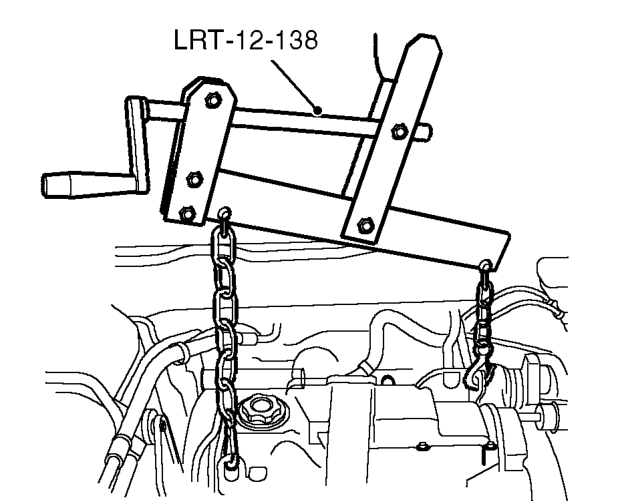

  1. Fit lifting bracket LRT-12-138 to lifting chains, and connect to lifting eyes on engine.
  2. Take weight of engine and gearbox on lifting chains.

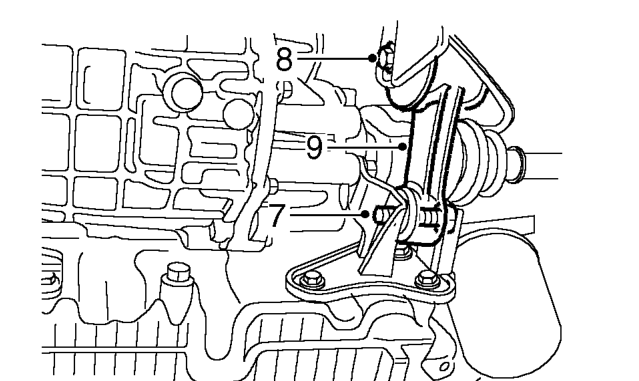

All models – Take weight of engine and gearbox on lifting chains.
  1. Remove bolt securing engine lower tie bar to bracket on sump.
  2. Loosen bolt securing engine lower tie bar to sub frame.
  3. Release tie bar from bracket on sump.
  4. Remove LH engine mounting. See this section.

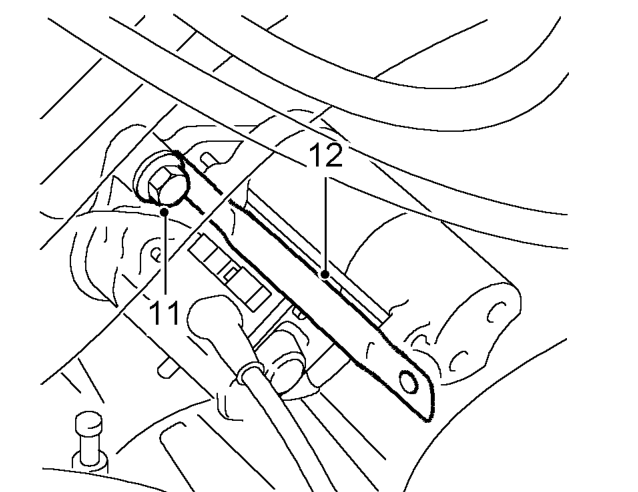

All models – Remove LH engine mounting. See this section.
  1. Remove bolt securing LH mounting strut to starter motor.
  2. Remove LH mounting strut.

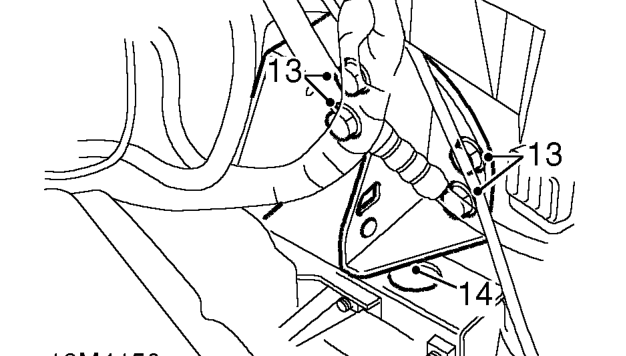

All models – Remove LH mounting strut.
  1. Remove 4 bolts securing LH engine mounting bracket to body.
  2. Remove LH engine mounting bracket.
  3. Position engine to LH side of engine bay. If necessary, use a suitable block of wood to hold engine in this position.
  4. Remove timing gear lower cover. See this section.
