All models (page 5 of 6)

17. Insert locking pin LRT-12-141 through hole in FIP drive gear and into hole in adapter plate. Locking pin must be a sliding fit. If pin is a tight fit, proceed as follows.

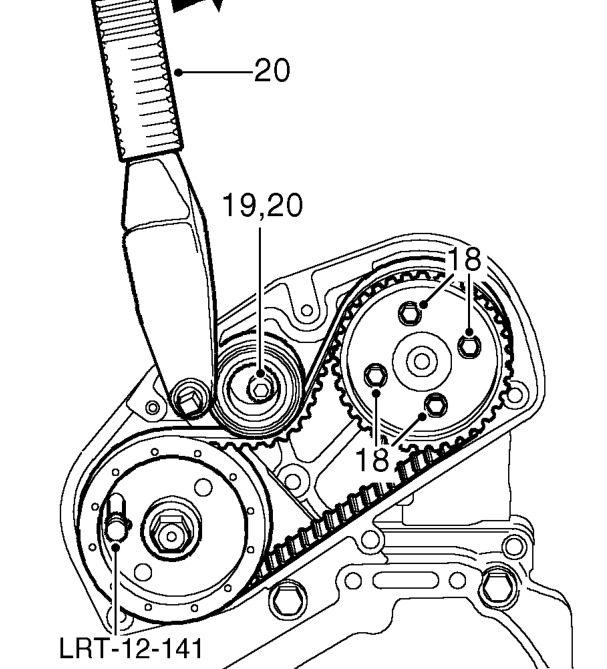

18. Loosen 4 bolts securing FIP timing belt drive gear to hub.
19. Loosen timing belt tensioner pulley Allen bolt.
20. Using a torque wrench fitted to tensioner pulley backplate, apply a clockwise (viewed from rear of engine) torque loading of 6 Nm to drive belt. Maintain loading and tighten tensioner pulley Allen bolt to 44 Nm.

CAUTION: Do not exceed the specified torque figure.

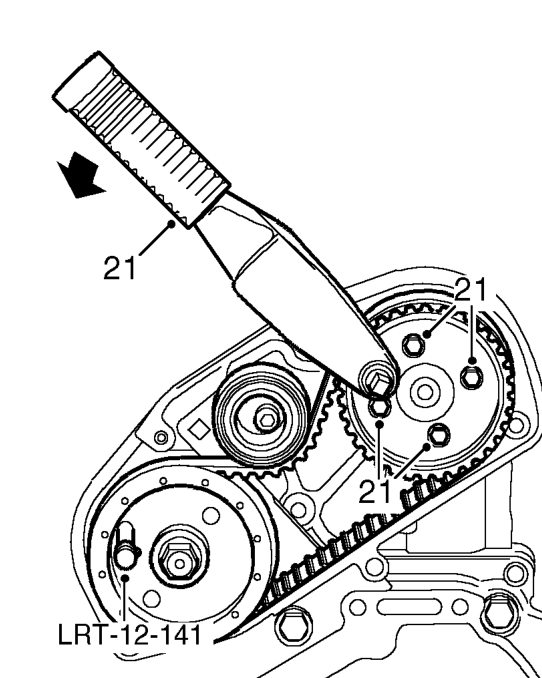

21. Fit torque wrench to square hole in FIP timing belt drive gear as shown and apply an anti-clockwise (viewed from rear of engine) torque loading of 25 Nm . Maintain loading and tighten 4 bolts securing gear to 25 Nm.
22. Remove locking pin LRT-12-141 and timing pin LRT-12-058.
