Engine - L SeriesModels fitted with air conditioning · page 1 of 2

Models fitted with air conditioning

  1. Fit compressor to water pump housing and tighten bolts to 45 Nm.
  2. Connect multiplug to compressor.

All models

  1. Fit both front drive shafts. See DRIVE SHAFTS, Repairs.

COVER - TIMING GEAR - UPPER

Service repair no - 12.65.41

Remove

  1. Remove engine acoustic cover. See ENGINE, Repairs.
  2. Remove underbelly panel. See BODY, Exterior fittings.

Models with air conditioning.

Models with air conditioning. – Remove underbelly panel. See BODY, Exterior fittings.

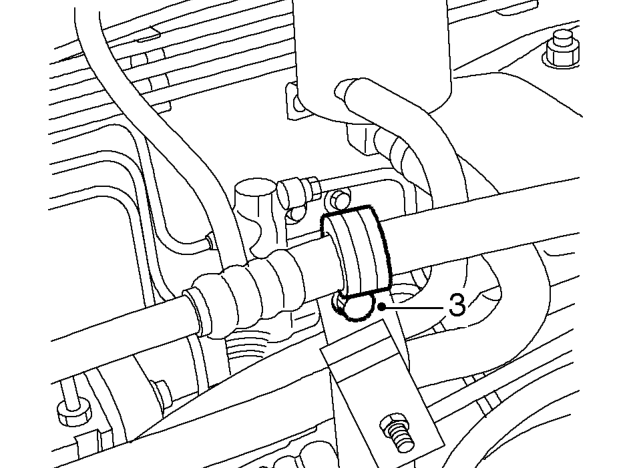

  1. Remove bolt securing air conditioning hose clip to PAS hose support bracket.

All models

  1. Use a jack to support engine under sump.

CAUTION: Use a block of wood on jack to protect the sump.
