Land Rover Freelander Workshop Manual (1998-2000)06 · Engine - L Series
06 · Engine

Models fitted with air conditioning (page 2 of 2)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - L SeriesModels fitted with air conditioning · page 2 of 2
Diagram

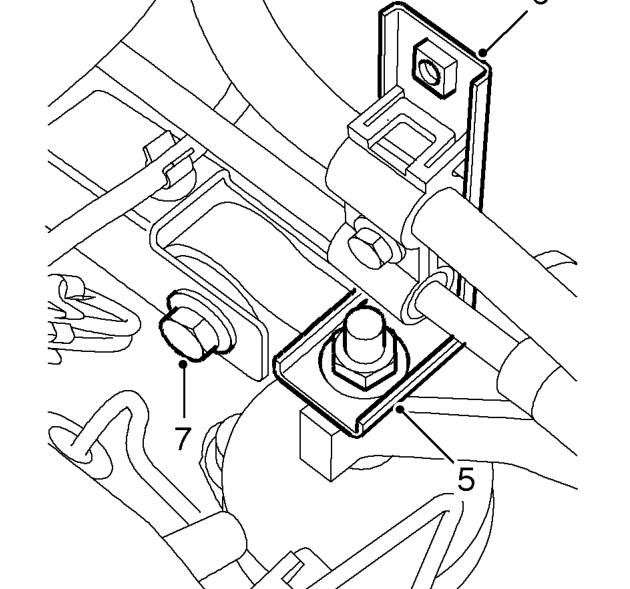

  1. Remove nut securing PAS hose support bracket to RH engine mounting stud.
  2. Release PAS hose bracket from mounting stud.
  3. Remove bolt securing engine upper tie bar to RH engine mounting bracket.
Remove bolt securing engine upper tie bar to RH engine mounting bracket.

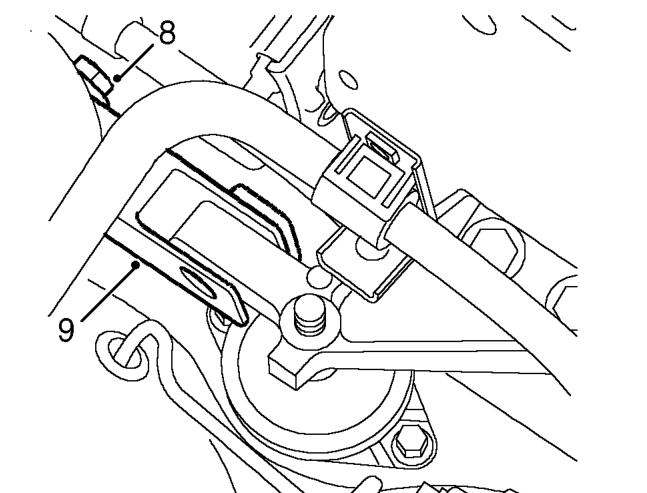

  1. Slacken bolt securing engine upper tie bar to bracket on body.
  2. Raise upper tie bar to clear RH engine mounting bracket.
Raise upper tie bar to clear RH engine mounting bracket.

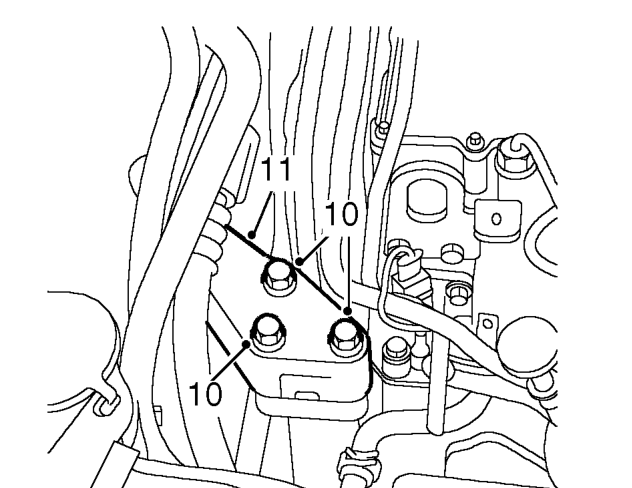

  1. Remove 3 bolts securing RH engine mounting bracket to engine.
  2. Remove RH engine mounting bracket.
Remove RH engine mounting bracket.

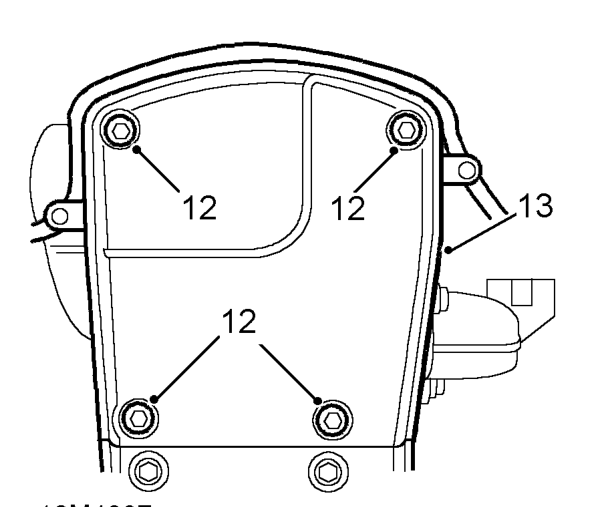

  1. Remove 4 bolts securing timing gear upper cover.
  2. Remove timing gear upper cover.
