Tie rod - lower

TIE ROD - LOWER

Service repair no - 12.45.17

Remove

1. Remove underbelly panel. See BODY, Repairs.

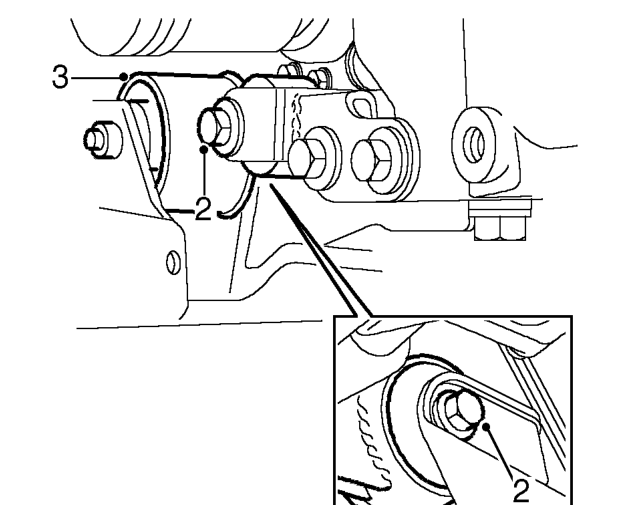

2. Remove 2 bolts securing lower tie rod.
3. Remove tie rod.

Refit

1. Fit tie rod and tighten bolts to 80 Nm.
2. Fit underbelly panel. See BODY, Repairs.

FILTER - ENGINE OIL

Service repair no - 12.60.04

Remove

1. Remove underbelly panel. See BODY, Exterior fittings.

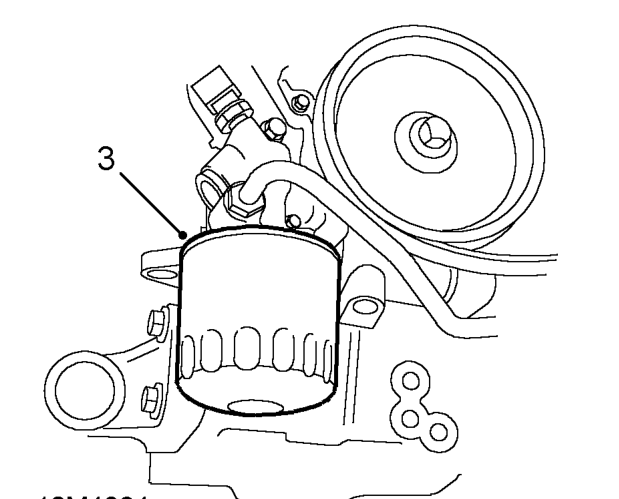

2. Clean area around filter head and place a container beneath engine

3. Using a strap wrench, unscrew and discard filter.

Refit

1. Clean mating face of filter head.
2. Lubricate sealing ring of NEW filter with clean engine oil.
3. Fit oil filter and tighten by hand until it seats, then tighten a further full turn or to a torque of 17 Nm.
4. Top up engine oil. See MAINTENANCE.
5. Start and run engine and check for leaks.
6. Stop engine, wait a few minutes, then check oil level. Top up if necessary.
7. Fit underbelly panel. See BODY, Exterior fittings.
